Choosing the right project is the hardest part of Green Belt certification.
The methodology is learnable. The tools are teachable. But selecting a project that is scoped correctly, has measurable data, and delivers real results within three to six months — that is where most candidates get stuck.
This guide solves that problem. It covers eight real project types across manufacturing, healthcare, finance, and logistics. Each example includes the problem statement, DMAIC approach, and documented outcome range. Use them to identify your own project — or to see what strong Green Belt work looks like before you start.
Table of contents
What Makes a Strong Green Belt Project?
A strong Green Belt project solves one bounded process problem. It has a measurable baseline, an unknown root cause, and available data. It delivers a result the business cares about.
Four criteria define every strong project:
Measurable gap. You need a specific current state and a specific target. “Defect rate is 8.3%, target is 2%” is a project. “Quality is poor” is not.
Unknown root cause. DMAIC exists to find causes that repeated troubleshooting never identified. If you already know the cause, you need an action plan — not a DMAIC project.
Available data. The Measure phase requires real process data. Confirm data exists — or can be collected within four to six weeks — before scoping the project.
Business relevance. The problem must connect to something leadership tracks: cost, quality, cycle time, or customer satisfaction. Projects solving invisible problems struggle for sponsorship.
Most Green Belt projects take three to six months. Well-scoped projects in data-rich environments finish in eight to ten weeks. A tight scope always beats an ambitious one.
Manufacturing Projects
Project 1: Reducing Solder Defects on a PCB Assembly Line
Problem: First-pass yield on a printed circuit board line runs at 91%. Solder bridging accounts for most failures at automated optical inspection.
DMAIC approach:
Define: The team scopes the project from paste printing through reflow to AOI inspection. The project charter documents $38,000 in annual rework costs.
Measure: The team pulls defect data by type, board location, and time of day. A measurement system analysis confirms the AOI system detects accurately. Baseline first-pass yield holds at 91.2%.
Analyze: A Pareto chart confirms bridging drives 61% of all defects. A multi-vari study finds defect rates are significantly higher in the first two hours of each shift. Hypothesis testing narrows the root cause to solder paste viscosity at startup.
Improve: A designed experiment on paste print parameters confirms that a controlled paste warm-up protocol eliminates most bridging. Squeegee pressure is reduced by 8%.
Control: SPC charts monitor squeegee pressure. A documented startup checklist enters the control plan.
Typical result: First-pass yield improves to 97%+. Annual rework cost decreases by $20,000-$40,000.
Public, Onsite, Virtual, and Online Six Sigma Certification Training!
- We are accredited by the IASSC.
- Live Public Training at 52 Sites.
- Live Virtual Training.
- Onsite Training (at your organization).
- Interactive Online (self-paced) training,
Project 2: Reducing Changeover Time on a CNC Machining Cell
Problem: Average changeover time between part families runs 94 minutes. This consumes approximately 18% of available cell capacity.
DMAIC approach:
Analyze: Time studies with direct observation document every changeover activity. The team applies Single-Minute Exchange of Die (SMED) methodology. It classifies each activity as internal (machine stopped) or external (machine running). The team finds 40% of internal activities can move to external with minor tooling changes.
Improve: The team converts external-capable activities. It creates standardized setup kits and a color-coded shadow board at the cell.
Typical result: Changeover time drops 40-60%. Usable cell capacity increases by 10-15%.
Healthcare Projects
Project 3: Reducing Emergency Department Wait Time
Problem: Average patient wait time from registration to first physician contact is 47 minutes. The national target is below 25 minutes. Patient satisfaction scores sit at the 38th percentile.
DMAIC approach:
Measure: The team collects timestamped data from 500 consecutive patient visits. Baseline wait time confirms at 47 minutes. The analysis shows 68% of wait time occurs between triage completion and room assignment.
Analyze: Delay concentrates between 10 AM and 2 PM. The root cause: one nurse handles both triage assessment and room assignment simultaneously. These two tasks cannot run in parallel.
Improve: The team implements a split-role model during peak hours. A real-time bed availability display goes live in the triage area.
Typical result: Wait time drops to below 25 minutes. Patient satisfaction scores improve 15-20 percentile points.
Also Read: Project Forecasting: How to Predict Your Success
Project 4: Reducing Medication Dispensing Errors
Problem: A hospital pharmacy records 14 dispensing errors per 1,000 prescriptions. The industry benchmark sits at 5 per 1,000. Errors include wrong drug, wrong dose, and wrong patient label.
DMAIC approach:
Analyze: A cause-and-effect diagram with the pharmacy team surfaces three root causes. Illegible physician prescriptions drive 34% of errors. A manual drug interaction check is skipped under high volume. An unlabeled staging area mixes filled orders from multiple patients.
Improve: The team mandates electronic prescription entry. The dispensing system automates drug interaction alerts. The staging area gets individual patient bins.
Typical result: Dispensing error rate drops 50-70%. The rate falls below the 5-per-1,000 benchmark.
Finance and Transactional Projects
Project 5: Reducing Invoice Processing Cycle Time
Problem: Average invoice cycle time from receipt to payment approval runs 18 days. The company loses $85,000 annually in early payment discounts it cannot capture within the discount window.
DMAIC approach:
Measure: A swimlane process map documents invoice flow through receipt, data entry, three-way match, approval routing, and payment. Time studies confirm 72% of elapsed time is wait time — invoices sitting in queues.
Analyze: A spaghetti diagram reveals that paper invoices route between three building floors. Approval delays account for 9 days of the total cycle. Invoices requiring director-level approval sit longest.
Improve: The team implements electronic invoice processing. A tiered approval matrix keeps routine invoices at department head level. A four-hour SLA notification flags invoices approaching discount deadlines.
Typical result: Cycle time drops from 18 days to 7 days. Early payment discount capture increases by $40,000-$70,000 annually.
Project 6: Reducing Loan Application Errors
Problem: A bank branch records a 22% loan application error rate. Errors cause 4.3 days of additional processing time per affected application.
DMAIC approach:
Analyze: A Pareto chart of error types shows missing employment documentation (34%), income verification inconsistencies (28%), and address verification failures (19%) drive over 80% of all errors.
Improve: A digital checklist in the loan officer’s system prevents submission without required fields. An automated income verification pull eliminates manual data entry.
Typical result: Application error rate drops 60-75%. Average processing time decreases by 2-3 days per application.
Also Read: Project Selection Criteria in Six Sigma: A Guide to Picking Winners
Logistics and Supply Chain Projects
Project 7: Reducing Order Fulfillment Errors in a Distribution Center
Problem: Order accuracy runs at 96.8% against a contractual requirement of 99.5%. The 3.2% error rate costs $180,000 annually in returns, customer credits, and re-shipments.
DMAIC approach:
Measure: Error records show wrong-item picks account for 71% of all errors. Three of twelve pick zones generate 64% of total errors.
Analyze: The three high-error zones contain products with similar packaging and adjacent bin locations. Barcode scanner MSA confirms the equipment functions correctly. The error is positional — similar products stored too close together.
Improve: The team reassigns slots to separate similar products. A secondary weight-check station confirms picks before packing. Bin labels add product photos.
Typical result: Order accuracy improves to 99.2-99.6%. Annual return and re-shipment costs drop by $100,000-$150,000.
Project 8: Reducing Supplier Lead Time Variability
Problem: Top-10 suppliers deliver on-time at 74%. Lead time variability causes two unplanned production line stoppages per month at $8,500 each.
DMAIC approach:
Analyze: Twelve months of delivery data shows lead time variability — not average lead time — causes stoppages. Three suppliers drive 68% of late deliveries. Root cause investigation finds the manufacturer’s own volatile ordering pattern disrupts supplier scheduling.
Improve: The team shares a 12-week rolling forecast with the three problem suppliers. A safety stock policy covers the five most critical components. A weekly delivery scorecard goes to all suppliers.
Typical result: On-time delivery improves 15-25 points. Line stoppage frequency drops 60-70%.

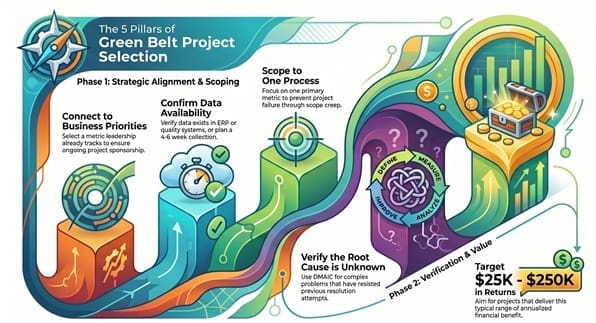

How to Choose Your Green Belt Project
Use this five-step framework before committing to a project.
Step 1 — Connect to a business priority. Pick a metric leadership already tracks. Projects solving unmonitored problems lose sponsorship fast.
Step 2 — Confirm data exists. Check that the relevant metrics are captured somewhere — a quality system, ERP, or manual log. If data does not exist, plan how to collect it within four to six weeks.
Step 3 — Scope to one process and one primary metric. Every Green Belt project that fails does so from scope creep. Start narrow.
Step 4 — Verify the root cause is unknown. If the cause is obvious and the fix is obvious, this is an action item. DMAIC is for problems that have resisted repeated attempts at resolution.
Step 5 — Estimate financial return. A well-scoped Green Belt project typically delivers $25,000 to $250,000 in annualized benefit. The exact range depends on industry, process, and problem type.
Key Takeaways on Lean Six Sigma Green Belt Project Examples
- Choosing the right Lean Six Six Sigma Green Belt project requires careful selection of a measurable, well-scoped issue with unknown causes and relevant data.
- This guide provides eight real Lean Six Sigma Green Belt project examples across various industries, including manufacturing, healthcare, and finance.
- Each project example uses the DMAIC approach and includes problem statements, methodologies, and typical outcomes for reference.
- Follow a five-step framework to identify your Green Belt project, ensuring it aligns with business priorities and has measurable results.
- Lean Six Sigma Green Belt projects typically take three to six months and focus on a specific problem to drive meaningful business improvements.
Frequently Asked Questions (FAQs) on Lean Six Sigma Green Belt Project Examples
What is a Lean Six Sigma Green Belt project?
A Lean Six Sigma Green Belt project is a structured improvement initiative that applies DMAIC to one bounded process problem. Green Belts lead the project part-time alongside their regular role. Projects typically take three to six months and deliver measurable improvements in cost, quality, cycle time, or customer satisfaction. The root cause must be unknown at the start — otherwise DMAIC is unnecessary.
What industries use Green Belt projects?
Green Belt projects run in every industry. Manufacturing uses them to reduce defects, improve yield, and cut changeover time. Healthcare applies them to wait times, medication errors, and readmission rates. Financial services uses them to cut processing errors and cycle times. Logistics applies them to order accuracy and supplier reliability. Any process with measurable outputs and documented steps qualifies for DMAIC analysis.
How long does a Green Belt project take?
Most Green Belt projects take three to six months from project charter to final control phase handoff. Projects with readily available data and a tight scope can finish in eight to ten weeks. Projects requiring new data collection infrastructure or complex multi-factor analysis run up to six months. Scope is the primary driver of timeline — a tightly scoped project always finishes faster than a broad one.
How do I know if my project idea is good enough?
A good project idea passes four tests. It has a quantifiable performance gap (current state vs. target). The root cause is currently unknown. Data exists or can be collected within the Measure phase. The problem connects to a business priority leadership already tracks. If it passes all four tests, the project is ready to charter.
Do all five DMAIC phases need to be completed?
Yes. A complete Green Belt project requires all five phases: Define, Measure, Analyze, Improve, and Control. Skipping Measure and moving directly to solutions is the most common — and most costly — project error. Without a verified baseline and data-confirmed root causes, improvements cannot be sustained. The Control phase is equally non-negotiable: without a documented control plan, gains erode within months.
Final Words
A good Green Belt project is not about finding an impressive problem. It is about finding the right one — measurable gap, unknown root cause, available data, and business relevance. Scope it tightly, follow all five DMAIC phases, and the results will be there.
