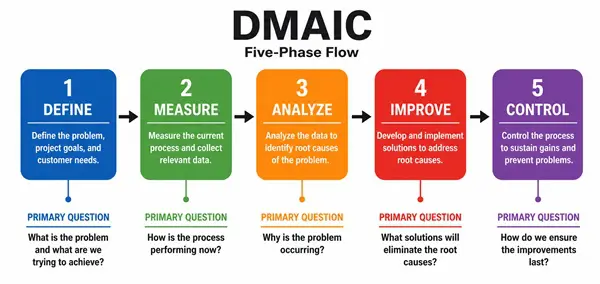

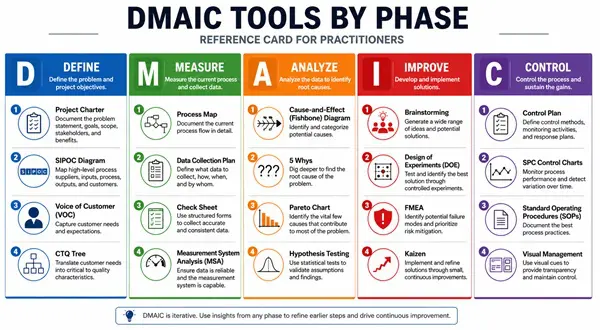

DMAIC is an abbreviation of the five improvement steps it comprises: Define, Measure, Analyze, Improve and Control. All of the DMAIC process steps are required and always proceed in the given order. It refers to a data-driven improvement cycle used for improving, optimizing and stabilizing business processes and designs. The DMAIC improvement cycle is the core tool used to drive Six Sigma projects. However, DMAIC is not exclusive to Six Sigma and can be used as the framework for other improvement applications.
The purpose of this step is to clearly pronounce the business problem, goal, potential resources, project scope and high-level project timeline. This information is typically captured within project charter document. Write down what you currently know. Seek to clarify facts, set objectives and form the project team. Define the following:
- A problem
- The customer(s), SIPOC
- Voice of the customer (VOC) and Critical to Quality (CTQs) — what are the critical process outputs?
The purpose of this step is to measure the specification of problem/goal. This is a data collection step, the purpose of which is to establish process performance baselines. The performance metric baseline(s) from the Measure phase will be compared to the performance metric at the conclusion of the project to determine objectively whether significant improvement has been made. The team decides on what should be measured and how to measure it. Good data is at the heart of the DMAIC process.
The purpose of this step is to identify, validate and select root cause for elimination. A large number of potential root causes (process inputs, X) of the project problem are identified via root cause analysis (for example a fishbone diagram). The top 3-4 potential root causes are selected using multi-voting or other consensus tool for further validation. A data collection plan is created and data are collected to establish the relative contribution of each root causes to the project metric, Y. This process is repeated until “valid” root causes can be identified. Within Six Sigma, often complex analysis tools are used. However, it is acceptable to use basic tools if these are appropriate. Of the “validated” root causes, all or some can be.
- List and prioritize potential causes of the problem
- Prioritize the root causes (key process inputs) to pursue in the Improve step
- Identify how the process inputs (Xs) affect the process outputs (Ys). Data are analyzed to understand the magnitude of contribution of each root cause, X, to the project metric, Y. Statistical tests using p-values accompanied by Histograms, Pareto charts, and line plots are often used to do this.
- Detailed process maps can be created to help pin-point where in the process the root causes reside, and what might be contributing to the occurrence.
The purpose of this step is to identify, test and implement a solution to the problem. Some projects can utilize complex analysis tools like DOE (Design of Experiments), but try to focus on obvious solutions if these are apparent. However, the purpose of this step can also be to find solutions without implementing them.
- Focus on the simplest and easiest solutions
- Test solutions using Plan-Do-Check-Act (PDCA) cycle
- Based on PDCA results, attempt to anticipate any avoidable risks associated with the “improvement” using the Failure mode and effects analysis (FMEA)
- Create a detailed implementation plan
- Deploy improvements
This step is sometimes referred to as making the change ‘stick’. Control is the final stage within the DMAIC improvement method. A Control chart can be useful during the Control stage to assess the stability of the improvements over time by serving as 1) a guide to continue monitoring the process and 2) provide a response plan for each of the measures being monitored in case the process becomes unstable.
