Computer Integrated Manufacturing (CIM) represents a comprehensive approach to product development and manufacturing, where all functions are seamlessly integrated using dedicated software packages. This integration ensures that data flows smoothly between different software applications, such as from product design to manufacturing processes, without any loss.

CIM relies on a common database and communication technologies to integrate design, manufacturing, and associated business functions, thereby automating significant portions of factory operations. By reducing reliance on manual processes, CIM aims to enhance efficiency, reduce costs, and minimize errors.

What is Computer Integrated Manufacturing (CIM)?

CIM is defined as the integration of all manufacturing enterprise operations around a centralized data repository using integrated systems and communication technologies. Unlike a standalone product, CIM is a management philosophy aimed at improving organizational efficiency and personnel effectiveness.

Computer Integrated Manufacturing (CIM) is a method of manufacturing in which the entire production process is controlled by a computer. This integration allows individual processes to exchange information with each part of the production process. The main goal of CIM is to streamline the manufacturing process and improve efficiency, quality, and flexibility.

Evolution of Computer Integrated Manufacturing

Computer Integrated Manufacturing evolved from the integration of Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) technologies. Initially developed to meet the demands of aerospace industries post-World War II, these technologies struggled with early manufacturing challenges.

The introduction of Numerical Control (NC) systems at MIT in the 1950s marked a pivotal moment, with early systems using paper tapes for programming. Advancements led to Computer Numerical Control (CNC) systems in the 1970s and 1980s, utilizing microprocessors for more flexible and efficient control of machine tools.

Simultaneously, CAD systems were developed to meet the geometric modelling needs of industries such as automotive and aeronautics. The integration of CAD and CAM systems allowed for the automatic generation of NC codes from geometric models, streamlining the design-to-production process.

By the 1980s, manufacturing saw islands of automation where CAD, CAM, DNC (Direct Numerical Control), FMS (Flexible Manufacturing Systems), and robotics operated independently. However, the need for comprehensive integration across all manufacturing segments gave rise to the concept of CIM. This integration required advancements in both hardware and software technologies, facilitating seamless data transfer and communication across functional modules.

Components of CIM

CIM Hardware

It comprises:

  • Manufacturing Equipment: This includes CNC machines (Computer Numerical Control), robots, automated assembly lines, and material handling systems. These technologies automate repetitive tasks, improve precision, and increase production speed.
  • Sensors and Data Collection Devices: These devices gather real-time data on machine performance, production rates, and quality metrics, enabling manufacturers to monitor and optimize processes.
  • Computers and Workstations: Essential for running CIM software applications, these devices process data, execute commands, and facilitate communication between different components of the CIM system.

CIM Software

It encompasses a wide range of applications:

  • CAD/CAM Systems: Used for product design and manufacturing process planning. CAD software allows engineers to create detailed 3D models of products, while CAM software generates tool paths and instructions for CNC machines.
  • Manufacturing Execution Systems (MES): MES software manages production schedules, tracks work orders, and monitors real-time production data. It ensures that manufacturing processes adhere to predefined quality standards and deadlines.
  • Enterprise Resource Planning (ERP): ERP systems integrate CIM with other business functions such as finance, procurement, and customer relationship management (CRM). They provide a centralized platform for managing resources, optimizing supply chains, and improving overall organizational efficiency.
  • Simulation and Modeling Tools: These tools simulate manufacturing processes, predict outcomes, and optimize production workflows. They enable manufacturers to test different scenarios, identify potential bottlenecks, and make informed decisions before implementing changes on the shop floor.

Elements of Computer Integrated Manufacturing (CIM) System

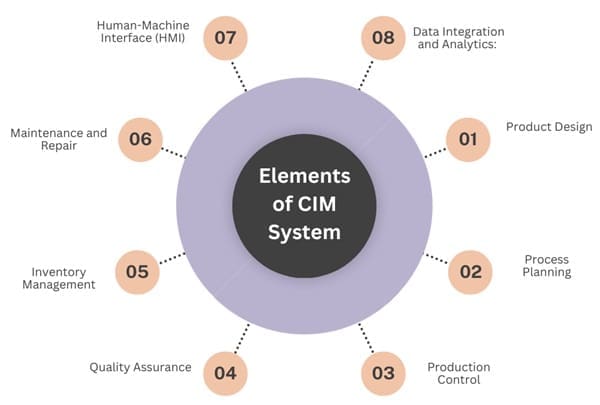

Elements of Computer Integrated Manufacturing (CIM) System
Elements of Computer Integrated Manufacturing (CIM) System

Key elements of a CIM system include:

  1. Product Design: Utilizes CAD software to create digital prototypes and validate designs before production.
  2. Process Planning: Involves CAM software to generate tool paths, select cutting tools, and optimize machining parameters for CNC machines.
  3. Production Control: Manages manufacturing operations in real-time, monitors machine status, and adjusts production schedules based on demand fluctuations.
  4. Quality Assurance: Integrates quality control measures, inspection processes, and feedback loops to ensure product consistency and compliance with industry standards.
  5. Inventory Management: Optimizes inventory levels, tracks raw materials, and manages supply chain logistics to minimize stockouts and reduce carrying costs.
  6. Maintenance and Repair: Implements predictive maintenance strategies, schedules equipment repairs, and monitors asset performance to maximize uptime and prolong equipment lifespan.
  7. Human-Machine Interface (HMI): Provides operators with intuitive interfaces to control machines, monitor production metrics, and troubleshoot issues in real-time.
  8. Data Integration and Analytics: Integrates data from various sources, performs advanced analytics, and generates actionable insights to optimize production efficiency and reduce operational costs.

Role of CIM in Manufacturing

CIM plays a crucial role in:

  • Simplifying production processes and improving product designs.
  • Automating manufacturing processes through advanced technologies.
  • Integrating all facets of production and support systems using IT and communication networks.
  • Enhancing efficiency, quality, and competitiveness through streamlined operations.

Objectives

The primary objectives of CIM include:

  • Simplifying production processes, product designs, and factory organization to facilitate automation and integration.
  • Automating production processes and supporting business functions using computers, machines, and robots.
  • Integrating all production and support processes through computer networks and cross-functional software applications.

Benefits of CIM

Benefits of CIM

The benefits of implementing CIM include:

  • Cost Reduction: By minimizing waste, optimizing resource utilization, Maintenance and Upgrades and reducing labor costs associated with manual processes.
  • Improved Accuracy: CIM ensures precise manufacturing processes, minimizing errors and variability in product quality.
  • Enhanced Competitiveness: CIM enables manufacturers to innovate faster, introduce new products to market quicker, and respond swiftly to customer demands.
  • Sustainable Operations: CIM supports sustainable manufacturing practices by optimizing energy consumption, reducing carbon emissions, and minimizing environmental impact.

Challenges of CIM

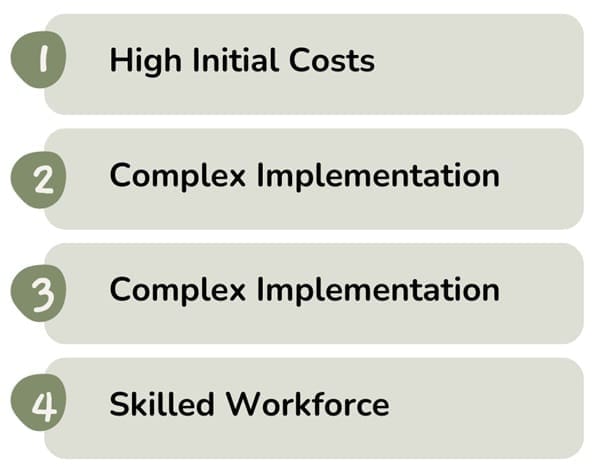

Challenges of CIM
  • High Initial Costs: Investment in hardware, software, and training can be significant.
  • Complex Implementation: Integrating various systems and ensuring seamless communication can be complex.
  • Maintenance and Upgrades: Ongoing maintenance and updates to software and equipment are necessary.
  • Skilled Workforce: Requires a workforce with specialized skills to manage and operate CIM systems.

Application of Computer Integrated Manufacturing (CIM)

CIM is widely used in various industries including:

  • Automotive: For designing, manufacturing, and assembling vehicles.
  • Aerospace: In the production of complex aircraft components.
  • Electronics: For manufacturing electronic devices and components.
  • Consumer Goods: In the production of household appliances and other consumer products.

Also Read: 10 Best Lean Six Sigma Books to Read

Implementation Strategies

Implementation Strategies of Computer Integrated Manufacturing (CIM)

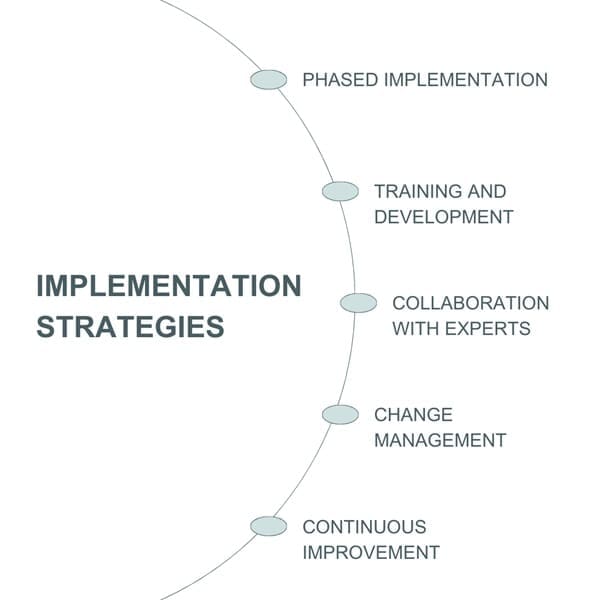

Implementation Strategies
  1. Phased Implementation: Implement CIM in phases to manage complexity and reduce risks. Start with critical areas and gradually expand to other parts of the manufacturing process.
  2. Training and Development: Invest in training programs to ensure employees have the necessary skills to operate and maintain CIM systems. Encourage continuous learning to keep up with technological advancements.
  3. Collaboration with Experts: Work with consultants and technology providers to design and implement CIM systems. Leverage expertise to ensure successful integration and optimization.
  4. Change Management: Develop a change management strategy to address resistance and ensure a smooth transition. Communicate the benefits of CIM to all stakeholders to gain their support.
  5. Continuous Improvement: Regularly review and optimize CIM processes to improve efficiency and performance. Implement feedback mechanisms to gather insights from employees and customers.
  1. Integration with Cloud Computing
    • Cloud-based CIM systems offer scalability, flexibility, and cost savings.
    • Enables remote access and real-time collaboration across multiple locations.
  2. Cybersecurity
    • As CIM systems become more connected, cybersecurity becomes crucial to protect sensitive data and prevent disruptions.
    • Implement robust security measures to safeguard against cyber threats.
  3. Sustainability
    • CIM can contribute to sustainable manufacturing by optimizing resource use and reducing waste.
    • Implementing green technologies and practices in CIM systems to minimize environmental impact.
  4. Personalization and Mass Customization
    • CIM enables mass customization, allowing manufacturers to produce personalized products at scale.
    • Utilize customer data and advanced manufacturing technologies to meet individual preferences.

Final Words

Computer Integrated Manufacturing represents a transformative approach to modern manufacturing, leveraging advanced technologies to integrate and automate production processes.

By integrating design, manufacturing, and business functions, CIM enhances efficiency, reduces costs, improves product quality, and ensures flexibility in responding to market dynamics. As technology continues to evolve, CIM remains at the forefront of driving innovation and efficiency in manufacturing industries worldwide.
