An NP chart, also known as a number of defectives chart, monitors the actual count of defective items in samples of constant size. Unlike its cousin the P chart, which tracks the proportion of defects, the NP chart focuses on raw numbers, making it intuitive for operators and managers who think in terms of actual defective units.
The “NP” designation comes from statistical notation where ‘n’ represents the sample size and ‘p’ represents the probability of finding a defect. When multiplied together (n × p), you get the expected number of defective items in each sample. This fundamental relationship drives the entire charting methodology.
Consider a factory producing electronic components where quality inspectors examine exactly 100 units every hour. Rather than calculating what percentage is defective, an NP chart simply plots how many defective units they found—perhaps 3 defective units in hour one, 7 in hour two, and 2 in hour three.
Table of contents
What is an NP Chart?
An NP chart stands as a key player in attribute control charts, focusing on the number of nonconforming items in fixed-size samples. Unlike charts that deal with measurements, this one handles count data—think pass or fail scenarios. It plots the count of defects over time, revealing if your process stays stable or drifts into chaos.
At its heart, the NP control chart assumes a constant sample size, which simplifies monitoring. For instance, if you inspect 100 units daily, it tracks how many fail each day. This approach shines in binary outcomes, like defective bulbs or incorrect orders. Semantic terms like “np statistics” highlight its roots in binomial distribution, where each item has an equal chance of defect.
Moreover, transitioning to why it matters: NP charts detect shifts early, preventing costly rework. They differ from variable charts by emphasizing attributes rather than metrics. In essence, if you’re counting defects with steady samples, this tool becomes your go-to for maintaining quality standards.
Public, Onsite, Virtual, and Online Six Sigma Certification Training!
- We are accredited by the IASSC.
- Live Public Training at 52 Sites.
- Live Virtual Training.
- Onsite Training (at your organization).
- Interactive Online (self-paced) training,
History and Basics of NP Charts
Rooted in statistical process control pioneered by Walter Shewhart in the 1920s, NP charts evolved as part of attribute monitoring techniques. Kurt Lewin and others built on this, but it’s Shewhart’s control chart legacy that frames modern uses. Today, industries rely on it for straightforward defect tracking.
Breaking down the basics, an NP chart features a centerline representing the average defect count, flanked by upper and lower control limits. These limits, typically set at three standard deviations, signal when variations warrant investigation. The “n” stands for sample size, “p” for proportion defective—hence NP as the expected defects.
Furthermore, LSI keywords like “n chart” sometimes appear, but it’s essentially the same as NP, focusing on nonconformities. Understanding these foundations equips you to apply it confidently, turning raw data into actionable intelligence.
NP Chart vs P Chart
When choosing between NP chart vs P chart, clarity comes from their core focuses. The P chart tracks the proportion of defects, ideal when sample sizes vary. In contrast, the NP chart counts actual defects, demanding constant sample sizes for accuracy.
Consider this: If your batches fluctuate, like inspecting 50 to 200 items, P chart vs NP chart leans toward P for normalized proportions. But with fixed groups, say always 100 units, NP simplifies by plotting raw counts, making trends easier to spot without fractions.
Additionally, NP chart vs P chart differences extend to interpretation. NP avoids decimal-heavy data, suiting visual learners, while P offers flexibility in uneven sampling. When to use each? Opt for NP in stable environments like assembly lines; choose P for variable processes like customer service logs. This distinction ensures you pick the right tool, enhancing precision in quality pursuits.
When to Use NP Charts
NP charts excel when you maintain consistent sample sizes and want to communicate results in absolute terms. Manufacturing environments typically benefit from this approach because operators understand “5 defective parts” more easily than “5% defective rate.” Additionally, NP charts provide more sensitive detection of process changes when sample sizes are large.
When P Charts Work Better
P chart vs NP chart comparison reveals that P charts perform better with variable sample sizes or when you need to compare processes with different inspection volumes. Service industries often prefer P charts because they can accommodate varying transaction volumes while maintaining meaningful comparisons across time periods.
Statistical Sensitivity Differences
The statistical foundation differs significantly between these chart types. NP charts use the binomial distribution directly, while P charts normalize data using proportions. This means NP charts often detect smaller process shifts more quickly, especially when dealing with low defect rates and large sample sizes.
Also Read: What is a Flowchart?
Key Differences Between NP Chart and P Chart
| Aspect | NP Chart | P Chart |
| Definition | Tracks the number of defective items in fixed-size samples. | Tracks the proportion of defective items, suitable for varying sample sizes. |
| Sample Size | Requires constant sample size (n) across all subgroups. | Accommodates varying sample sizes across subgroups. |
| Data Type | Counts actual number of nonconforming items (e.g., 5 defects out of 100). | Calculates proportion of defects (e.g., 5% defective). |
| Use Case | Ideal for consistent processes like assembly lines with fixed batch sizes. | Best for processes with fluctuating sample sizes, like service industries. |
| Calculation | Centerline: Average defect count (np-bar); Limits: np-bar ± 3*√(np-bar*(1-p)). | Centerline: Average proportion (p-bar); Limits: p-bar ± 3*√(p-bar*(1-p-bar)/n). |
| Output | Plots raw defect counts, simpler for whole-number visuals. | Plots proportions, often involving decimals for precision. |
| Complexity | Simpler to interpret due to direct counts, less math-heavy. | Slightly more complex due to proportion calculations, especially with varying n. |
| Example | Monitoring 100 bulbs daily for defects (e.g., 3 defective). | Tracking error rates in customer calls with sample sizes of 50–200 daily. |
Mathematical Foundation of NP Statistics
Understanding NP statistics requires grasping the underlying probability principles that make these charts reliable. The binomial distribution forms the theoretical backbone, assuming that each item inspected has an independent, constant probability of being defective.
Core Statistical Assumptions
Every NP chart relies on four critical assumptions:
- Each sample contains exactly the same number of items (constant n)
- Each item has the same probability of being defective (constant p)
- Items are independent of each other
- The process operates under stable conditions
Control Limit Calculations
The mathematical beauty of NP charts lies in their straightforward control limit calculations:
Center Line (CL) = np̄ where np̄ represents the average number of defects across all samples
Upper Control Limit (UCL) = np̄ + 3√(np̄(1-p̄))
Lower Control Limit (LCL) = np̄ – 3√(np̄(1-p̄))
These formulas assume a 3-sigma control system, which captures approximately 99.7% of normal process variation. When the lower control limit calculation yields a negative number, statisticians set it to zero since you cannot have negative defects.

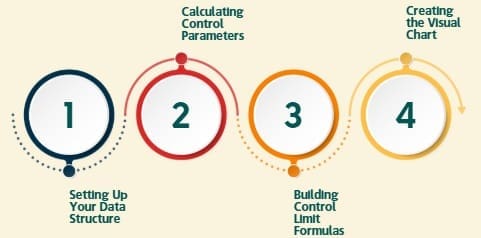

Creating NP Charts in Excel
Microsoft Excel provides an accessible platform for creating professional NP control charts without expensive specialized software. This section demonstrates how to build NP in Excel using built-in functions and charting capabilities.
Setting Up Your Data Structure
Begin by organizing your data in a logical Excel layout:
- Column A: Sample number or time period
- Column B: Number of defective items found
- Column C: Sample size (should be constant)
- Column D: Center line calculation
- Column E: Upper control limit
- Column F: Lower control limit
Calculating Control Parameters
Start by determining your average defect rate. In an empty cell, use Excel’s AVERAGE function to calculate the mean number of defects: =AVERAGE(B:B). This value becomes your center line for the entire chart.
Next, calculate the average proportion defective by dividing your center line by the sample size: =CenterLine/SampleSize. This proportion (p̄) feeds into your control limit calculations.
Building Control Limit Formulas
Excel formulas for control limits require careful construction. For the upper control limit, use: =CenterLine + 3*SQRT(CenterLine*(1-(CenterLine/SampleSize)))
The lower control limit formula becomes: =MAX(0, CenterLine – 3*SQRT(CenterLine*(1-(CenterLine/SampleSize))))
Note the MAX function ensures your lower limit never drops below zero, which makes practical sense for defect counting.
Creating the Visual Chart
Excel’s line chart feature transforms your calculated data into a professional control chart:
- Select your data range including sample numbers, defect counts, and control limits
- Insert a line chart with markers
- Format different data series with distinct colors and line styles
- Add horizontal lines for control limits using Excel’s reference line features
- Apply professional formatting with appropriate titles and axis labels
Also Read: What is Statistical Process Control Chart?
Advanced Excel Techniques
Power users can enhance their NP in Excel implementation through several advanced techniques:
Dynamic Control Limits: Use Excel’s dynamic arrays to recalculate control limits automatically when new data arrives.
Conditional Formatting: Highlight out-of-control points using Excel’s conditional formatting rules.
Data Validation: Prevent data entry errors by setting up validation rules that ensure sample sizes remain constant.
Template Creation: Build reusable templates that new users can populate with minimal training.
Examples of NP Charts in Action
NP charts thrive in diverse settings, illuminating quality issues creatively. In manufacturing, a bulb factory tests 500 units daily. Defects hover around 20; the chart flags a spike to 35, tracing it to faulty wiring. Quick fixes restore balance.
In healthcare, tracking medication errors in fixed patient groups uses NP control charts. With 100 doses sampled, counts below 5 stay in limits; a jump signals training needs.
Service industries apply it too: A call center monitors incorrect resolutions in 50 calls. NP statistics reveal seasonal trends, prompting staffing changes.
These examples showcase versatility—from production lines to offices—proving NP charts drive tangible improvements.
Advantages and Limitations of NP Charts
NP charts offer clear benefits: Simplicity in counting defects eases adoption, and fixed samples ensure straightforward stats. They excel at early detection, fostering continuous enhancement.
However, limitations arise with varying samples—switch to P charts then. Also, they ignore defect severity, suiting binary data only. Despite this, in right contexts, advantages outweigh drawbacks.
FAQs About NP Charts
What is an NP Chart?
An NP chart monitors the number of defective items in constant-sized samples for quality control.
How does NP Chart vs P Chart differ?
NP counts defects with fixed samples; P uses proportions for varying sizes.
Can I create an NP Chart in Excel?
Yes, using formulas for averages and limits, then inserting a line chart.
What are control limits in NP statistics?
UCL and LCL, calculated as average ± 3 standard deviations, never below zero.
When should I use an NP Control Chart?
For binary defect data with consistent sample sizes, like manufacturing inspections.
Is there a formula for NP Chart?
Yes, centerline is average defects; limits use sqrt(np-bar*(1-p-bar)).
What if LCL is negative in NP in Excel?
Set it to zero, as negative defects aren’t possible.
How does N Chart relate to NP Chart?
N Chart often refers to the same, focusing on sample size in defect counts.
Final Words
Wrapping up, NP charts emerge as essential allies in quality control, blending simplicity with powerful insights. From understanding basics and calculations to Excel creation and real examples, we’ve seen how they outshine in fixed-sample scenarios compared to P charts.
Embrace NP statistics to spot trends, reduce defects, and foster excellence. As industries evolve, this tool remains timeless, urging proactive monitoring. Implement it today, and watch your operations soar to new heights of efficiency and reliability.
