Special cause variation represents unpredictable, intermittent changes in process performance. These changes result from specific, identifiable factors outside the normal operating system. Unlike common cause variation, special cause variation does not occur naturally within all processes. It signals that something unusual has affected the process.
This creates instability and unpredictability in outcomes. Special cause variation makes outcomes less reliable.
This type of variation appears as abnormal patterns on control charts. These patterns indicate that the process has been influenced by factors not part of the routine operation. These influences can be positive or negative. They can also be temporary or persistent.
They always represent a departure from the process’s natural state of statistical control. Special cause variation disrupts the normal state.
Quality management professionals, process engineers, and anyone involved in continuous improvement initiatives must understand special cause variation. This understanding becomes crucial for effective quality management.
Special cause variation forms the foundation of statistical process control (SPC). It enables organizations to distinguish between normal process behavior and conditions that require immediate investigation and corrective action.
The identification and elimination of special cause variation lead to more stable, predictable processes. These processes consistently deliver quality products and services. This understanding helps organizations focus their improvement efforts on factors that truly impact process performance. It prevents them from reacting unnecessarily to normal process fluctuations.
Table of contents
- What is Special Cause Variation?
- Origins and Development of Special Cause Theory
- Distinguishing Special Cause from Common Cause Variation
- Types and Sources of Special Cause Variation
- Root Cause Analysis for Special Cause Variation
- Technology and Automation in Special Cause Detection
- Final Words
- Frequently Asked Questions
- Related Articles
What is Special Cause Variation?
Special cause variation refers to irregular or unexpected changes in a process. These changes are not part of its normal, everyday fluctuations. Specific, identifiable factors trigger these variations. These factors include equipment malfunctions, operator mistakes, defective raw materials, or sudden environmental changes.
These factors are not usually present in the process. They cause the process to behave abnormally.
Unlike common cause variation, special cause variation does not arise from the inherent randomness and routine operation of a process. Special cause variation is unpredictable and often results in noticeable deviations from the usual performance.
For example, a machine may suddenly break down or a batch of materials may arrive with defects. The process output will change in a way that stands out from typical patterns.
Public, Onsite, Virtual, and Online Six Sigma Certification Training!
- We are accredited by the IASSC.
- Live Public Training at 52 Sites.
- Live Virtual Training.
- Onsite Training (at your organization).
- Interactive Online (self-paced) training,
Origins and Development of Special Cause Theory
Walter Shewhart’s Foundational Work
Walter Shewhart, often called the father of statistical quality control, first introduced the concept of special cause variation in the 1920s at Bell Telephone Laboratories. His groundbreaking work distinguished between two fundamental types of variation that affect all processes, providing the theoretical foundation for modern quality control methods.
Shewhart’s innovation lay in recognizing that variation follows predictable patterns when processes operate under normal conditions. He developed control charts as tools to monitor these patterns and detect when special causes disrupt normal process behavior. This approach revolutionized manufacturing quality control and laid the groundwork for continuous improvement methodologies.
The Shewhart cycle, also known as the Plan-Do-Check-Act (PDCA) cycle, emerged from his understanding of how special causes affect process stability. This systematic approach to problem-solving emphasizes the importance of data-driven decision making in quality improvement efforts.
Evolution Through Quality Management Systems
Shewhart’s concepts gained widespread acceptance through the work of W. Edwards Deming, who promoted statistical thinking in Japan after World War II. Deming’s interpretation of special cause variation became integral to Total Quality Management (TQM) and later influenced Six Sigma methodologies.
The integration of special cause variation concepts into quality management systems has evolved to encompass various industries beyond manufacturing. Service organizations, healthcare institutions, and government agencies now apply these principles to improve process performance and customer satisfaction.
Modern approaches to special cause variation incorporate advanced statistical techniques, computer-based monitoring systems, and real-time data analysis capabilities that extend far beyond Shewhart’s original control chart methods.
Distinguishing Special Cause from Common Cause Variation
Characteristics of Common Cause Variation
Common cause variation, also known as natural or random variation, represents the inherent variability present in all processes. This variation results from numerous small factors that are difficult to identify individually but collectively create predictable patterns of fluctuation around a central tendency.
Processes exhibiting only common cause variation demonstrate statistical stability, meaning their behavior remains predictable within established control limits. The sources of common cause variation include minor variations in materials, environmental conditions, equipment performance, and human factors that occur routinely during normal operations.
Common cause variation typically accounts for 85-95% of process problems, according to Deming’s theory. However, addressing common cause variation requires fundamental changes to the process system rather than quick fixes or corrections to individual instances.
Identifying Special Cause Characteristics
Special cause variation manifests as non-random patterns that violate the assumptions of statistical control. These patterns include points outside control limits, runs of consecutive points on one side of the centerline, trends showing systematic increases or decreases, and cycles that repeat at regular intervals.
Special cause variation has specific, identifiable sources. These sources do not belong to the normal process operation. These sources might include equipment malfunctions, material defects, operator errors, environmental changes, or procedural deviations.
Special cause variation indicates that factors outside the normal operating conditions have disturbed the process. This situation requires immediate investigation and corrective action. Furthermore, failing to address special causes can lead to quality problems, increased costs, and customer dissatisfaction.

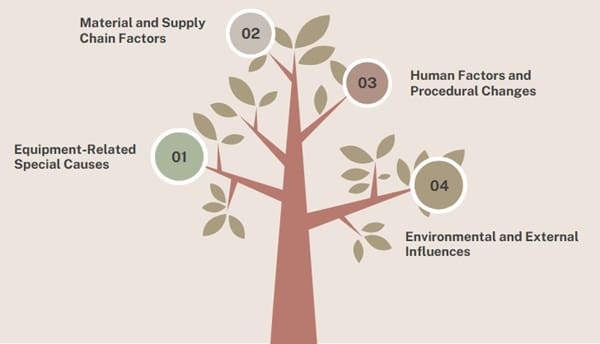

Types and Sources of Special Cause Variation
Equipment-Related Special Causes
Equipment malfunctions represent one of the most common sources of special cause variation in manufacturing and service processes. These issues can range from minor calibration drifts to major mechanical failures that significantly impact process performance.
Preventive maintenance programs help reduce equipment-related special causes by identifying and addressing potential problems before they affect process stability. Additionally, regular calibration of measurement instruments ensures that monitoring systems accurately detect when special causes occur.
Equipment-related special causes often produce characteristic patterns on control charts, such as sudden shifts in process level or increased variability that corresponds to specific equipment operating conditions. These patterns help quality professionals identify the root cause more quickly and implement appropriate corrective actions.
Material and Supply Chain Factors
Variations in raw materials, components, or supplies can introduce special cause variation when they differ significantly from established specifications. These variations might result from supplier changes, transportation issues, storage conditions, or quality control problems at supplier facilities.
Supply chain disruptions, whether due to natural disasters, economic factors, or logistical problems, can create special cause variation that affects multiple processes simultaneously. Organizations must develop contingency plans and supplier qualification programs to minimize these risks.
Material-related special causes often appear as clusters of out-of-control points or shifts in process performance that coincide with new material lots or supplier changes. Tracking material traceability information alongside control chart data helps identify these relationships.
Human Factors and Procedural Changes
Human error, training deficiencies, and procedural non-compliance can generate special cause variation in processes that depend on manual operations or decision-making. These factors become particularly significant in service industries where human interaction plays a central role.
Changes in personnel, work procedures, or organizational policies can introduce special cause variation even when the changes are intended to improve performance. Therefore, organizations must carefully manage change implementation and monitor processes for unexpected effects.
Training programs, standardized work procedures, and error-proofing techniques help reduce human-related special causes by ensuring consistent performance across different operators and operating conditions.
Environmental and External Influences
Environmental factors such as temperature, humidity, vibration, and electromagnetic interference can create special cause variation in sensitive processes. These influences often follow predictable patterns related to seasonal changes, facility conditions, or external events.
Regulatory changes, market conditions, and competitive pressures represent external sources of special cause variation that affect organizational processes. While these factors may be beyond direct control, organizations can develop strategies to minimize their impact on process stability.
Environmental monitoring systems and process design considerations help identify and mitigate environmental sources of special cause variation before they significantly impact process performance.

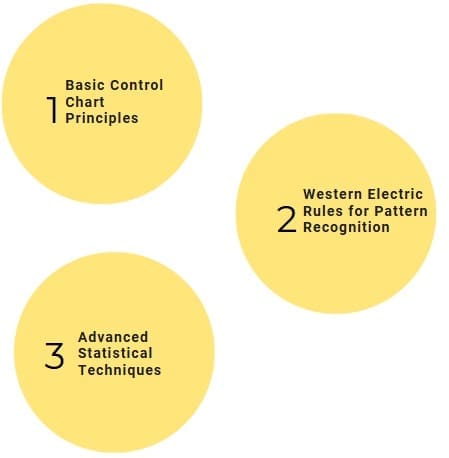

Detection Methods and Control Chart Techniques
Basic Control Chart Principles
Control charts serve as the primary tool for detecting special cause variation by plotting process measurements over time and comparing them to statistically calculated control limits. These limits represent the boundaries of normal process variation, with points outside these limits indicating special cause variation.
The central line on a control chart represents the process average, while upper and lower control limits are typically set at three standard deviations from the centerline. This configuration provides approximately 99.7% confidence that points within the limits represent common cause variation.
Different types of control charts are used for different types of data, including X-bar and R charts for continuous data, p-charts for proportion data, and c-charts for count data. The choice of control chart depends on the nature of the process output being monitored.
Western Electric Rules for Pattern Recognition
The Western Electric Company developed a set of rules for identifying special cause variation patterns that go beyond simple out-of-control points. These rules help detect special causes that might not trigger traditional control limit violations but still indicate process instability.
Rule 1 identifies points beyond the control limits, while Rule 2 detects two out of three consecutive points beyond two standard deviations from the centerline. Rule 3 looks for four out of five consecutive points beyond one standard deviation, and Rule 4 identifies eight consecutive points on one side of the centerline.
These pattern recognition rules increase the sensitivity of control charts to special cause variation while maintaining reasonable false alarm rates. However, they require careful interpretation to avoid overreacting to normal process fluctuations.
Advanced Statistical Techniques
CUSUM (Cumulative Sum) and EWMA (Exponentially Weighted Moving Average) charts provide enhanced sensitivity to small shifts in process performance that might not be detected by traditional Shewhart control charts. These techniques are particularly useful for detecting gradual changes or small special causes.
Multivariate control charts monitor multiple process variables simultaneously, helping identify special causes that affect relationships between variables even when individual variables remain within control limits. These techniques become essential for complex processes with multiple interrelated outputs.
Statistical process monitoring software now incorporates advanced algorithms for automatic pattern recognition, real-time alerting, and root cause analysis support. These tools enhance the speed and accuracy of special cause detection while reducing the workload on quality professionals.
Root Cause Analysis for Special Cause Variation
Systematic Investigation Approaches
Effective root cause analysis for special cause variation requires systematic investigation methods that prevent jumping to conclusions based on limited information. The goal is to identify the true cause of the variation rather than treating symptoms or obvious factors that may not be the actual root cause.
The 5 Whys technique provides a simple but effective approach to root cause analysis by repeatedly asking “why” until the fundamental cause is identified. This method works particularly well for special causes with clear cause-and-effect relationships.
Fishbone diagrams (Ishikawa diagrams) help organize potential causes into categories such as people, processes, materials, methods, machines, and environment. This structured approach ensures comprehensive consideration of all possible special cause sources.
Data Collection and Analysis Methods
Successful root cause analysis depends on collecting relevant data that can confirm or eliminate potential causes. This data might include process measurements, environmental conditions, material properties, equipment performance parameters, and operator actions.
Stratified sampling and designed experiments help isolate the effects of different potential causes by systematically varying suspected factors while controlling others. This approach provides statistical evidence for cause-and-effect relationships rather than relying on assumptions or opinions.
Correlation analysis and regression techniques can identify relationships between potential causes and process outcomes. However, these statistical relationships must be interpreted carefully to distinguish correlation from causation.
Documentation and Verification
Thorough documentation of root cause analysis activities ensures that findings can be verified and lessons learned can be applied to similar situations in the future. This documentation should include the investigation process, data collected, analysis methods used, and conclusions reached.
Verification of root cause conclusions involves implementing corrective actions and monitoring process performance to confirm that the identified causes have been eliminated. This step is crucial for validating the effectiveness of root cause analysis efforts.
Failure to properly verify root cause analysis conclusions can lead to recurring special cause variation problems and wasted resources on ineffective corrective actions. Therefore, follow-up monitoring should continue until process stability is restored and maintained.

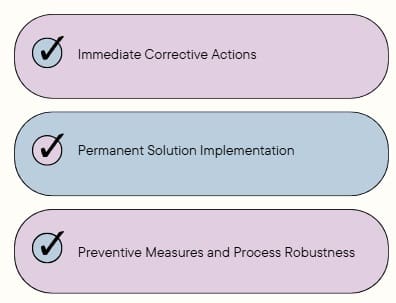

Elimination and Prevention Strategies
Immediate Corrective Actions
When special cause variation is detected, immediate corrective actions focus on restoring process stability and preventing further quality problems. These actions might include adjusting equipment settings, replacing defective materials, retraining operators, or implementing temporary process controls.
The urgency of corrective actions depends on the severity of the special cause and its potential impact on product quality, customer satisfaction, and safety. Critical processes may require immediate shutdown and investigation, while less critical processes might continue operating with enhanced monitoring.
Temporary containment measures help prevent defective products from reaching customers while permanent corrective actions are being developed and implemented. These measures might include increased inspection, rework procedures, or alternative process routes.
Permanent Solution Implementation
Permanent solutions to special cause variation require addressing the root cause rather than just treating symptoms. This might involve equipment modifications, process redesign, supplier changes, training programs, or procedural improvements.
Teams should carefully plan and execute the implementation of permanent solutions. This approach helps avoid introducing new sources of special cause variation.
Managers should apply change management principles. These principles ensure that modifications are properly tested, documented, and communicated to all affected personnel.
Cost-benefit analysis helps prioritize permanent solution efforts by comparing the cost of implementation to the expected benefits in terms of reduced variation, improved quality, and cost savings. This analysis ensures that resources are allocated to the most impactful improvements.
Preventive Measures and Process Robustness
Preventive measures focus on reducing the likelihood of special cause variation through improved process design, better controls, and enhanced monitoring systems. These measures represent proactive approaches to quality management rather than reactive responses to problems.
Process robustness refers to the ability of a process to maintain stable performance despite minor variations in operating conditions. Robust processes are less susceptible to special cause variation because they can tolerate small deviations without significant impact on outcomes.
Design of experiments (DOE) techniques help identify process operating conditions that maximize robustness while maintaining desired performance levels. This approach leads to more stable processes that are naturally resistant to special cause variation.
Industry Applications and Case Studies
Manufacturing Sector Examples
Manufacturing industries have extensive experience with special cause variation management through decades of statistical process control implementation. Automotive manufacturers use control charts to monitor critical dimensions, surface finishes, and assembly processes, with special cause investigation protocols that can shut down production lines when necessary.
Electronics manufacturing requires extremely tight control of processes due to the precision required in component assembly and testing. Special cause variation in these processes can result in significant yield losses and customer returns, making rapid detection and correction essential for profitability.
Service Industry Applications
Service industries have adapted special cause variation concepts to monitor and improve process performance in areas such as customer service, transaction processing, and service delivery. These applications require modified approaches because service processes often involve human interaction and subjective quality measures.
Healthcare organizations use special cause variation monitoring to track patient outcomes, medication errors, infection rates, and treatment effectiveness. These applications can have life-and-death implications, making accurate detection and rapid response to special causes critically important.
Technology and Software Development
Software development organizations have begun applying special cause variation concepts to monitor development processes, defect rates, and system performance. These applications help identify when development processes are affected by factors outside normal operating conditions.
IT service organizations use special cause variation monitoring to track system availability, response times, and incident resolution rates. This approach helps distinguish between normal system behavior and conditions requiring immediate attention or corrective action.
Integration with Quality Management Systems
ISO 9001 and Quality Standards
ISO 9001 quality management standards emphasize the importance of process monitoring and improvement, making special cause variation management a key component of compliant quality systems. Organizations must demonstrate their ability to identify and address process variations that could affect product or service quality.
The risk-based thinking approach in ISO 9001:2015 aligns well with special cause variation concepts by requiring organizations to identify potential sources of process instability and implement appropriate controls. This integration helps organizations develop more robust quality management systems.
Six Sigma and Lean Integration
Six Sigma methodologies incorporate special cause variation concepts through the DMAIC (Define, Measure, Analyze, Improve, Control) framework, with control charts playing a key role in the Measure and Control phases. This integration helps ensure that improvement projects address true process issues rather than normal variation.
Lean manufacturing principles complement special cause variation management by emphasizing waste elimination and process standardization. Standardized processes are less susceptible to special cause variation because they operate under more controlled conditions.
The combination of Six Sigma statistical rigor with Lean operational excellence creates powerful frameworks for managing special cause variation while simultaneously improving overall process performance and efficiency.
Continuous Improvement Culture
Organizations with strong continuous improvement cultures tend to be more effective at managing special cause variation because they have established systems for identifying, investigating, and resolving process issues. These cultures emphasize data-driven decision making and employee involvement in improvement activities.
Employee training programs that include special cause variation concepts help create awareness of process stability issues and empower workers to identify and report potential problems. This frontline involvement is crucial for rapid detection and response to special causes.
Technology and Automation in Special Cause Detection
Real-Time Monitoring Systems
Modern technology has revolutionized special cause variation detection through real-time monitoring systems that can identify process anomalies within seconds or minutes of occurrence. These systems use sensors, data acquisition systems, and automated analysis algorithms to provide immediate alerts when special causes are detected.
Internet of Things (IoT) devices enable continuous monitoring of process parameters that were previously checked only periodically. This expanded monitoring capability increases the likelihood of detecting special causes before they significantly impact product quality or customer satisfaction.
Predictive Analytics Applications
Predictive analytics techniques can identify conditions that are likely to lead to special cause variation before the actual variation occurs. This capability enables proactive intervention to prevent quality problems rather than reactive response after problems have already affected the process.
Advanced statistical models can incorporate multiple process variables, environmental factors, and historical patterns to predict when special causes are likely to occur. These predictions help organizations schedule maintenance, adjust process parameters, or implement preventive measures proactively.
Artificial Intelligence and Machine Learning
Artificial intelligence applications in special cause variation management are rapidly expanding, with AI systems capable of analyzing vast amounts of process data to identify subtle patterns that indicate emerging special causes. These systems can process information from multiple sources simultaneously to provide comprehensive process insights.
Engineers can train machine learning models on historical special cause events. This training improves the models’ ability to distinguish between normal process variation and conditions requiring investigation. This learning capability enables continuous improvement in detection accuracy and reduction in false alarms.
Final Words
Special cause variation management represents a fundamental capability for organizations seeking to achieve process excellence and maintain competitive advantage through superior quality performance. The ability to distinguish between normal process behavior and conditions requiring corrective action enables more effective resource allocation and faster response to quality issues.
The evolution of special cause variation concepts from simple control charts to sophisticated predictive analytics demonstrates the enduring relevance of statistical thinking in quality management. Organizations that master these concepts while embracing emerging technologies will be better positioned to achieve sustained success in increasingly competitive markets.
Effective special cause variation management requires integration of statistical knowledge, process understanding, and organizational capabilities. This integration creates synergies that enhance overall process performance while building capabilities for continuous improvement and adaptation to changing conditions.
Frequently Asked Questions
What is the difference between special cause and common cause variation?
Special cause variation results from specific, identifiable factors outside normal process operation and appears as non-random patterns on control charts. Common cause variation is the natural, inherent variability present in all processes and creates predictable patterns within statistical control limits.
How do you identify special cause variation on a control chart?
Special cause variation appears as points outside control limits, runs of consecutive points on one side of the centerline, trends showing systematic changes, or other non-random patterns that violate the assumptions of statistical control.
What should you do when special cause variation is detected?
When special cause variation is detected, immediately investigate to identify the root cause, implement corrective actions to restore process stability, and establish preventive measures to avoid recurrence. Document the investigation and verify the effectiveness of corrective actions.
Can special cause variation ever be beneficial?
Yes, special cause variation can be beneficial when it results in improved process performance. In such cases, the goal is to identify what caused the improvement and implement it as a permanent process change rather than allowing it to be temporary.
How often should control charts be updated to detect special causes?
Control chart update frequency depends on the process characteristics, risk levels, and detection requirements. Critical processes may require real-time monitoring, while less critical processes might be monitored hourly, daily, or weekly based on their stability and importance.
