Causal models are a method used to represent and analyze the cause-effect relationships in various domains. They are closely related to Dependency Graphs, Belief Networks, and Bayes Nets but have a distinct focus on causality.
Causal models help in knowledge acquisition for Bayesian reasoning by avoiding assumptions of independent effects or disjoint causes. These models are designed to represent knowledge more accurately by assuming specific causal relationships rather than relying on the assumptions of distributions or independent effects.
Table of contents
What is a Causal Model?
A causal model is a framework that outlines the causal connections between different variables. It involves a set of mathematical equations, often known as structural equations, that describe how different variables influence one another. In addition to equations, causal models also use graphs to represent these relationships visually.
These graphs provide a clear picture of how variables interact within the system.
There are various types of causal models, including covariance structure, multilevel, and counterfactual models. Each type has a different way of representing causality, but they all share the goal of explaining how one variable causes changes in another.
Components of Causal Models
- Mathematical Equations: These equations describe the relationship between variables. For instance, they show how one variable influences another.
- Graphs: Causal graphs visually represent the relationships between variables. These graphs often include directed edges (arrows) that indicate the direction of causality.

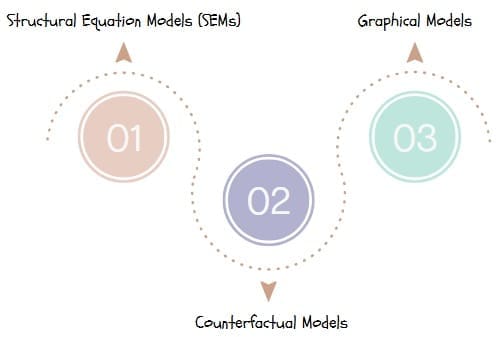

Types of Causal Models
Causal models can be classified into different categories, such as:
Structural Equation Models (SEMs): These models use mathematical equations to describe causal relationships. SEMs are often used in social sciences to analyze complex systems where many variables interact with each other.
Counterfactual Models: These models focus on measuring the average causal effect of an intervention or treatment. They do not necessarily aim to model the causal mechanism in detail, but instead focus on comparing outcomes between different scenarios.
Graphical Models: These models rely on graphs, such as directed acyclic graphs (DAGs), to represent causal relationships. These models allow researchers to visualize the structure of causal relationships and better understand how different variables are connected.

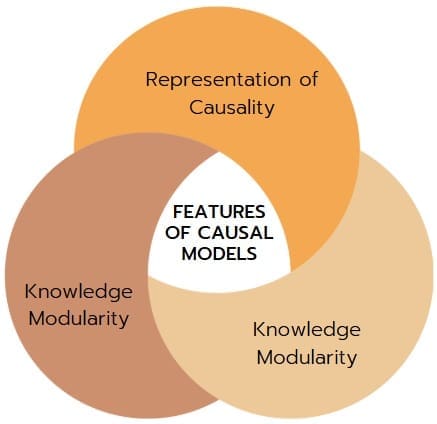

Key Features of Causal Models
- Representation of Causality: Causal models are typically graphical structures, similar to Dependency Graphs. However, their edges carry a more specific meaning: they represent direct causal relationships between events. In these models, an edge from one event to another indicates that the first event directly causes the second one.
- Knowledge Modularity: One of the most important features of causal models is their modularity. They allow experts to break down knowledge into more manageable pieces, facilitating the analysis of complex systems. This modularity is different from other methods like Probabilistic Similarity Networks, which organize knowledge in a different way.
- Focus on Domains with Sequential Events: Causal models are especially useful in domains where events can be thought of as processes that cause other events, which in turn trigger additional processes. For example, military indication and warning (I&W) systems and sensor fusion systems often require causal models to understand how one event leads to another.
Examples
Military I&W Systems: Causal models help infer enemy actions by analyzing sequential events such as aircraft takeoffs or landings.
Medical Diagnosis: In medicine, diseases can be modeled as processes that trigger other processes. For example, symptoms may result from underlying diseases, and understanding these causal relationships can aid diagnosis.
Sensor Fusion: In systems that combine data from multiple sensors, causal models can clarify how one sensor reading influences the next.
Key Goals of Causal Models
These are designed to help address three key types of questions:
- Subjunctive Questions: These ask about the effects of potential future actions or policy changes. For example, “What would happen if we raise taxes?”
- Counterfactual Questions: These focus on past events and ask what might have happened if things had been different. For example, “What would have happened if the government had enforced stricter laws?”
- Scientific Questions: These aim to uncover the mechanisms behind certain phenomena. For instance, “What processes cause lung cancer?”
Causal Inference: More than Just Probability
It goes beyond basic probability. It isn’t just about predicting what will happen based on observations. Instead, causal inference involves predicting what would happen if we intervene in a system.
For example, consider predicting the effect of smoking on lung cancer. Observational data might tell us that people with tar-stained fingers are more likely to develop lung cancer.
However, causal prediction focuses on what would happen if we intervened and removed that exposure—predicting the effect of no longer smoking, for instance. This is a key distinction between statistical prediction and causal prediction.
Causal Search
Causal search involves identifying possible models that can explain observed data. It aims to find causal structures that align with the available background knowledge and data. It’s important to note that simply using tools like multiple regression isn’t always sufficient for this purpose, as causal relationships can be complex.
Example
One common example of causal search is the study of whether foreign investment inhibits democracy in third-world countries.
This question considers various factors, such as the level of political exclusion and civil liberties, and explores how foreign investment may interact with these factors to impact democracy. Such an investigation requires the use of causal models to understand the relationships between these variables.
Causal Model Theory
Causal model theory uses a graphical formalism to represent causal relationships. One of the most common methods to represent such models is through causal Bayes nets. These networks are acyclic graphs where nodes represent variables and links represent causal relationships.
A causal link from X to Y means that an intervention on X could change the value of Y. This is a key aspect of causal modeling, as it focuses on how changes in one variable can influence another. The theory is rooted in the idea of intervention—if you change X, Y will change as well, but the reverse is not necessarily true.
Causal Relationships: Cause, Enable, and Prevent
In causal models, the meaning of “cause,” “enable,” and “prevent” differs slightly, though all relate to how events or actions influence one another.
- Cause: A cause directly leads to an effect. If A causes B, then changing A will change B. For example, if smoking causes lung cancer, reducing smoking would lower the risk of lung cancer.
- Enable: Enabling suggests that one event makes it possible for another to happen. For example, access to a coffee maker enables productivity because it makes coffee available, but it’s not strictly necessary for productivity.
- Prevent: Prevention means that one event reduces the likelihood of another. For example, severe punishment may prevent crime, but only under certain conditions.
Each of these relationships is represented in a causal model with structural equations that capture the dependencies between events. Understanding how these variables interact helps us make more accurate predictions about cause and effect.
Dependency Graphs vs. Causal Models
Causal models have a closer connection to Dependency Graphs (D-Graphs) but with a critical difference in the way the edges are interpreted. In D-Graphs, the edges represent statistical dependencies between events, whereas in causal models, edges specifically represent cause-and-effect relationships.
Causal Model Edges: The presence of an edge in a causal model means that the event at the tail of the arrow directly causes the event at the head of the arrow.
D-Graph Edges: In contrast, D-Graphs use edges to represent conditional independencies, i.e., events are related if there is an edge between them, but this does not imply causality.
This distinction is crucial because in causal models, the expert can specify not only how one event causes another but also the likelihood that an event will trigger other subsequent events.
Knowledge Elicitation in Causal Models
Causal models provide a more flexible approach to knowledge elicitation. In traditional D-graphs, experts provide probabilities regarding the likelihood of an event occurring, given the state of other events. However, in causal models, experts can provide probabilities about both:
- The likelihood of an event being caused by a set of prior events.
- The likelihood that the event will, in turn, trigger subsequent events.
By allowing both types of probabilities, causal models offer a more comprehensive way of modeling knowledge. This feature makes causal models highly modular, allowing for easier knowledge representation and more effective inference.
Causal Model in Complex Domains
Causal models are well-suited for complex domains where many events are interdependent. In these domains, one event can trigger a sequence of others, and understanding these chains of causality is essential for decision-making.
- Military Applications: In military applications like I&W, causal models are used to understand enemy actions. For instance, a series of aircraft takeoffs and landings may suggest certain military strategies or actions, such as troop movement or base dispersal.
- Medical Diagnosis: Causal models can also be applied in medicine, where diseases are often processes that cause a series of effects or symptoms. By understanding these cause-effect chains, doctors can diagnose conditions more accurately.

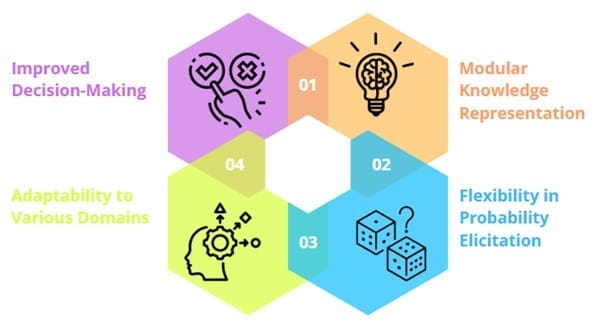

Advantages of Causal Models
Improved Decision-Making: Causal models provide a more structured and detailed way to analyze complex events. By explicitly representing causal relationships, they enable better decision-making, especially in dynamic and complex systems.
Modular Knowledge Representation: Causal models allow experts to organize their knowledge in modular units. This modularity simplifies knowledge representation, analysis, and inference, making the models easier to understand and work with.
Flexibility in Probability Elicitation: With causal models, experts can provide more detailed probability information. This includes not only the likelihood of an event occurring based on prior events but also the likelihood of it causing subsequent events. This added flexibility enhances the model’s ability to represent complex systems.
Adaptability to Various Domains: Causal models are highly adaptable and can be applied to a wide range of fields, from military operations to healthcare. Their ability to model sequential and interdependent events makes them valuable for any domain where cause-effect relationships play a key role.

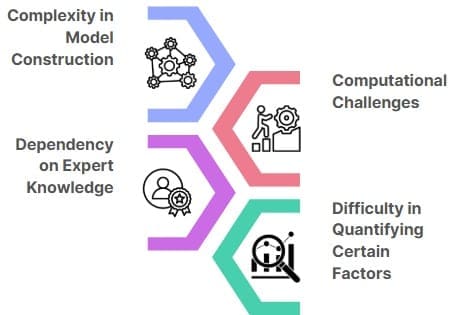

Limitations of Causal Models
Despite their advantages, causal models come with certain limitations:
Complexity in Model Construction: Building a causal model can be time-consuming and complex. It requires detailed domain knowledge and careful consideration of the cause-effect relationships among events.
Computational Challenges: Like other probabilistic models, causal models require significant computational resources, particularly when dealing with large numbers of variables and events.
Dependency on Expert Knowledge: Causal models rely heavily on the expertise of domain specialists. This reliance on expert input can make the models prone to inaccuracies or biases if the experts are not well-versed in the subject matter.
Difficulty in Quantifying Certain Factors: Some events or factors may be difficult to quantify, such as human emotions or unpredictable environmental conditions. In these cases, causal models may struggle to provide accurate predictions or inferences.
Theoretical Foundations of Causal Models
Causal models are typically represented using directed acyclic graphs (DAGs). In these graphs:
- Nodes represent events or variables.
- Directed edges (arrows) represent causal relationships between events.
These models rely on the following key assumptions:
Directed Acyclic Graph (DAG): The graph used to represent the relationships between variables is directed (edges have a direction) and acyclic (no loops).
Causal Markov Condition: The joint probability distribution of the variables must adhere to the Markov property based on the DAG. This means each variable is conditionally independent of its non-descendants, given its parents in the graph.
Faithfulness Condition: The joint distribution must reflect all and only the conditional independencies implied by the causal Markov property.
These conditions ensure that the causal model accurately represents the relationships among variables and that the model can be used to make valid inferences.
Example: Causal Model in Military I&W Systems
Consider a military I&W system designed to diagnose enemy intentions based on observed events like aircraft takeoffs and landings. A causal model could be used to analyze whether an abnormal number of takeoffs is caused by logistics movement or fighter unit dispersal. Each of these events can be modeled as a process that causes the observed takeoffs and landings.
- If logistics movement is occurring, it is likely to cause a certain level of increased takeoffs, correlated with increased traffic on logistics command networks.
- Similarly, fighter dispersal may cause a different pattern of takeoffs, correlated with tactical command net traffic.
By representing these cause-effect relationships, the model helps military analysts understand whether the observed events point to one or both causes, helping to predict enemy strategies more accurately.
Final Words
Causal models provide a powerful tool for representing complex cause-and-effect relationships. They are especially useful in domains where sequential events trigger other processes. By allowing for modular knowledge representation, causal models help experts build more accurate models of complex systems.
While they offer numerous advantages, such as improved decision-making and flexibility in probability elicitation, they also come with challenges, including complexity and reliance on expert knowledge.
In various domains, from military applications to healthcare, causal models have proven to be invaluable for analyzing complex systems and making informed decisions based on cause-and-effect reasoning.
