Manufacturers create objects in Additive Manufacturing (AM), commonly known as 3D printing, by adding material layer by layer. They control the process using digital data, which eliminates the need for traditional molds or tooling.
Because of this, AM allows for a highly flexible and efficient manufacturing process. It also has a relatively short lead time compared to conventional manufacturing techniques.
AM technology has been used in prototype development since the late 1980s, particularly in the United Kingdom. The country became a leader in AM during the 1990s.
Initially, engineers and designers used AM mainly for prototyping, but advances in materials and machine capabilities have enabled them to use it as a versatile tool for creating final products across multiple industries.
Today, AM is transforming sectors such as aerospace, automotive, medical, and even consumer products. It offers significant advantages over traditional manufacturing methods by enabling the creation of more complex and customized designs at a lower cost. Additionally, AM is helping businesses enhance productivity and improve sustainability.
Table of contents
What is Additive Manufacturing?
Additive Manufacturing (AM) refers to processes that build objects layer by layer from a digital model. Unlike traditional manufacturing techniques that subtract material from a larger block, AM adds material only where needed.
This allows for much more intricate designs and shapes, which would be extremely difficult or even impossible to create using traditional methods.
Designers create a 3D model of the object on a computer using Computer-Aided Design (CAD) software. They then translate this model into a format the AM machine can understand, often using a file type called STL (Standard Triangulation Language). The machine then uses this information to build the object layer by layer, from the ground up.
AM is not limited to one material type. It can work with various materials like metals, plastics, ceramics, and even composites. This versatility makes AM ideal for many industries, including aerospace, automotive, healthcare, and consumer products.
How Does Additive Manufacturing Work?
At its core, AM involves creating an object by joining materials together using a specific energy source. This energy source can be in the form of lasers, electron beams, or even mechanical pressure, depending on the technique used. The materials used in AM are often in a powder or liquid form, which is gradually solidified into the desired shape.
Designers begin the AM process by creating a design model on a computer. Once they complete the design, they send it to the AM machine. The machine interprets the digital data and constructs the object layer by layer. It builds each layer on top of the previous one, eventually forming a complete three-dimensional object.

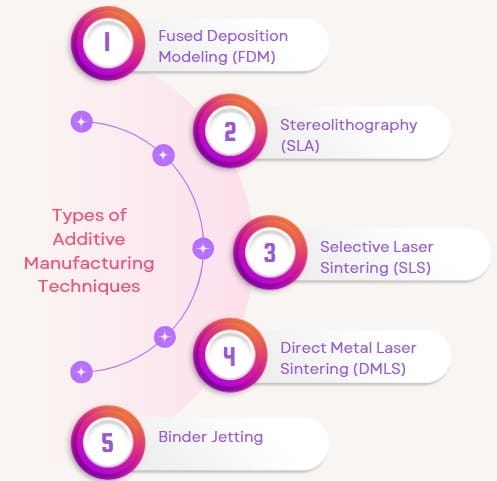

Types of Additive Manufacturing Techniques
Several different techniques fall under the umbrella of Additive Manufacturing, and these techniques can be classified based on the materials used, the energy sources, or the method of material deposition. Some of the most common AM techniques include:
Fused Deposition Modeling (FDM)
FDM is one of the most popular AM techniques, especially for creating plastic parts. In this process, a filament of thermoplastic material is heated and extruded through a nozzle. The nozzle moves in a controlled pattern, depositing the material layer by layer to build up the final object. FDM is known for its simplicity and cost-effectiveness.
Stereolithography (SLA)
SLA uses a laser to cure liquid resin into solid layers. The laser hardens each layer of the object as it deposits the resin. This technique delivers high accuracy and creates smooth, detailed parts, making it suitable for prototypes and small, complex components.
Selective Laser Sintering (SLS)
In SLS, a laser fuses powdered materials, typically plastics or metals, together. The laser selectively melts the powder in each layer, and the process builds the object layer by layer. Manufacturers often use SLS to create functional prototypes and end-use parts, especially in industries like aerospace and automotive.
Direct Metal Laser Sintering (DMLS)
DMLS is a metal-based AM technique that uses a laser to sinter metal powder, creating solid parts. Manufacturers often use this process to produce strong, durable metal parts with high precision. Industries like aerospace, automotive, and healthcare widely use DMLS to create custom parts and tools.
Binder Jetting
In binder jetting, a liquid binder selectively joins powdered materials, such as metals or ceramics, layer by layer. The process then cures the part in a furnace to consolidate the materials. This technique is known for its speed and its ability to create parts with complex geometries.
Key Applications of Additive Manufacturing
AM is widely used in several high-value applications:
- Aerospace: AM allows the production of small, lightweight parts with complex geometries.
- Space: It supports the creation of components with extreme weight constraints and small production volumes.
- Oil & Gas: AM is ideal for producing one-off parts and facilitating in-field repairs.
- Motorsport & Premium Automotive: AM enables the creation of customized, low-volume parts.
- Medical: AM allows for the production of personalized implants and prosthetics.
- Customized Consumer Products: Products can be tailored to individual preferences and specifications.
Various AM processes, such as laser powder bed fusion and vat polymerization, allow the creation of plastic and metal parts, each with its own unique requirements and operational details.

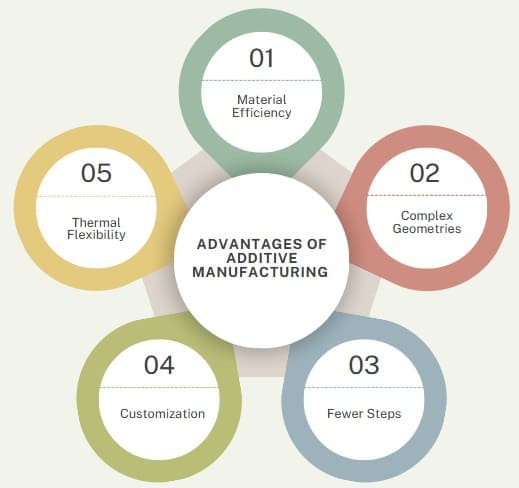

Advantages of Additive Manufacturing Over Conventional Manufacturing
AM differs from traditional manufacturing methods in several key ways:
Material Efficiency: AM is more material-efficient compared to conventional subtractive methods, which often involve cutting away material.
Complex Geometries: AM can create intricate designs that would be very challenging or impossible to achieve using conventional methods.
Fewer Steps: While traditional manufacturing requires multiple steps for part assembly, AM integrates both manufacturing and assembly into one step.
Customization: AM allows for easy customization of products, making it ideal for producing personalized items.
Thermal Flexibility: AM processes offer more control over the material properties, including temperature, compared to conventional techniques.

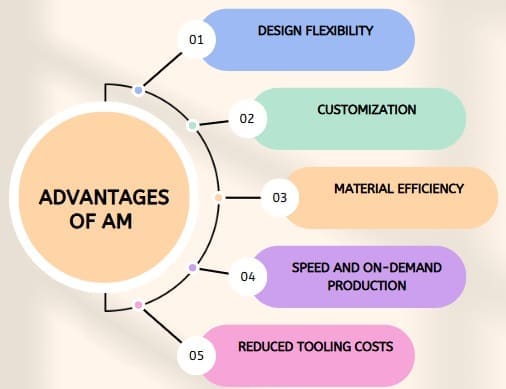

Advantages in Manufacturing
One of the biggest advantages of AM is its ability to reduce waste. Traditional methods often require large amounts of raw material to be cut away during the manufacturing process. AM, however, adds only the material needed to form the part, leading to less waste.
AM also enables more efficient production of small quantities of parts, which is particularly important in industries like aerospace and automotive, where companies often require custom, low-volume parts. Additionally, the ability to print parts on-demand can reduce inventory costs and supply chain complexity
Design Flexibility
AM allows for the creation of complex geometries that would be impossible or expensive to produce using traditional methods. It enables designs with intricate internal structures, lightweight lattice designs, and detailed surface features that would be challenging to produce with machining or molding.
Customization
AM allows for high levels of customization, making it ideal for producing bespoke items. Whether it’s custom implants for medical patients or personalized consumer products, AM allows for the mass production of tailored products on demand.
Material Efficiency
Traditional manufacturing often involves wasting significant amounts of material. In contrast, AM uses only the material required to build each layer, minimizing waste and increasing efficiency. Additionally, some AM processes allow for the recycling of materials.
Speed and On-Demand Production
AM can significantly shorten lead times for producing prototypes and end-use parts. Since parts are built directly from digital files, manufacturers eliminate the need for tooling and molds, enabling rapid production and design iterations.
Reduced Tooling Costs
With traditional methods like casting or injection molding, creating molds and tools can be very expensive. AM eliminates the need for these tools, leading to cost savings, especially for low-volume or custom production.

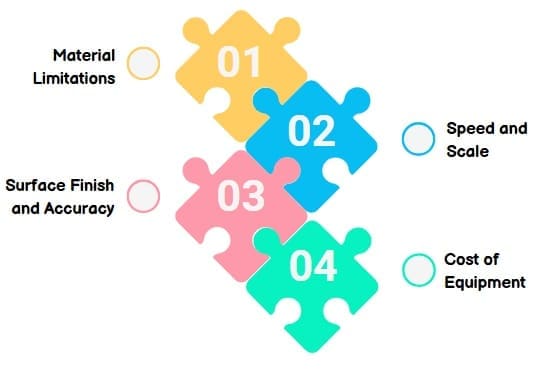

Challenges of Additive Manufacturing
Despite its numerous advantages, AM still faces several challenges that need to be addressed:
Material Limitations
While AM can work with a variety of materials, the range is still somewhat limited compared to traditional methods. Many materials commonly used in manufacturing, like certain metals or composites, are not yet widely available for AM.
Speed and Scale
For large-scale production, AM can be slower than traditional methods. While it excels at producing small batches or custom parts, scaling AM to mass production levels still requires overcoming significant technical hurdles.
Surface Finish and Accuracy
While AM can create highly detailed parts, the surface finish of parts often requires post-processing. Additionally, the accuracy of AM parts may not always meet the high tolerances required for some applications, especially in industries like aerospace.
Cost of Equipment
The initial investment in AM machines can be high, especially for metal-based AM processes. While experts expect costs to decrease over time, the high upfront expense poses a barrier for many small and medium-sized businesses.
Future of Additive Manufacturing
As technology continues to improve, experts expect AM to play an even greater role in manufacturing. Engineers and scientists will expand the range of materials used in AM through advances in machine design, material science, and process control. This will allow even more industries to adopt AM for end-use production, not just prototyping.
Furthermore, the integration of artificial intelligence (AI) and machine learning into AM processes will allow for real-time process optimization. These technologies can automatically adjust parameters to ensure the highest possible quality and efficiency during production.
Final Words
Additive Manufacturing has evolved from a prototyping tool to a revolutionary method of production that is transforming industries worldwide. With its ability to produce complex, customized components quickly and with minimal material waste, AM offers a range of benefits that traditional manufacturing methods simply cannot match.
Whether in aerospace, healthcare, or automotive industries, AM continues to open new possibilities for design, manufacturing, and supply chain management. As technology advances, it is likely that AM will play an even greater role in shaping the future of production across the globe.
