Microfluidics is the science of moving small amounts of fluid through tiny channels. Very small devices, often no larger than a coin, contain these channels. We call these devices microfluidic devices.
They are used in medical tests and diagnostics. They can help detect diseases, infections, or conditions. Doctors use them to monitor blood sugar or check for cancer cells. Researchers use them to study DNA and track viruses.
Microfluidics manufacturing is how these devices are made. It involves complex tools and materials. It also requires exact control of design, structure, and chemistry.
Table of contents
Origin and History of Microfluidics
The concept began in the 1950s, used first in inkjet printers. These printers rely on tiny fluid jets controlled through micro-channels. In the late 1970s, researchers used silicon wafers for gas chromatography. This marked the transition into solid-state microfluidics applications.
In the 1980s, more breakthroughs appeared. This decade saw the birth of micro-pumps and micro-valves. These devices began replacing large fluid systems. By the 1990s, many industries had adopted microfluidic technologies.
What Is Microfluidics Manufacturing?
Microfluidics manufacturing deals with controlling fluids at a tiny scale. This field focuses on channels and chambers with micrometer dimensions. These devices guide small amounts of liquid with high precision.
Microfluidic systems use channels thinner than a human hair. They often handle nanoliters or picoliters of fluid. These tiny volumes enable precise control and fast reactions.
Researchers build microfluidic devices for medical, chemical, and biological tasks. These devices often work as tiny laboratories. That’s why they’re called “lab-on-a-chip” systems.
Microfluidics is growing because of its accuracy, speed, and low cost.

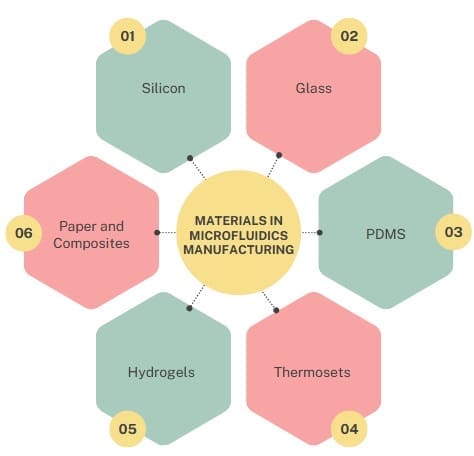

Materials in Microfluidics Manufacturing
Material selection is crucial in microfluidics. It affects performance, durability, and usability. The micro-scale size makes surface properties more important. Here are the key materials used:
1. Silicon
Silicon was the first material used. It comes from semiconductor technology. However, it’s not ideal for all microfluidics. Especially in systems using voltage or electro-osmosis, silicon underperforms.
2. Glass
Glass offers optical clarity and heat resistance. It is good for detecting reactions and supporting fluid flow. It performs well with solvents, making it great for lab-on-chip devices.
3. PDMS (Polydimethylsiloxane)
PDMS is the most used polymer. It’s cheap, easy to mold, and flexible. It sticks to surfaces after curing and can be peeled or bonded easily. Its softness makes it ideal for custom designs.
PDMS is porous, so it absorbs some molecules. This limits its use in certain chemical tests. It may also allow water evaporation and alter test accuracy.
4. Thermosets (e.g., SU-8)
Thermosets are strong, heat-resistant, and chemically stable. These materials allow full 3D chip designs. They work well in harsh chemical environments.
5. Hydrogels
Hydrogels are water-absorbing polymers. They mimic natural tissues well. This makes them suitable for tissue studies. However, they offer lower resolution than other materials.
6. Paper and Composites
Paper is cheap and easy to shape. It’s good for simple, portable devices. Composite materials mix properties of different materials for special use cases.
Microfluidics Manufacturing Techniques
Microfluidics devices are made using several key methods. The technique depends on the material used.
1. Photolithography
This is the most used technique. It uses light to etch patterns on material. It works best with silicon or glass. Cleanrooms are required for precise work.
2. Hot Embossing
This technique presses a mold into heated polymer. It’s good for producing many copies. It suits thermoplastics like PMMA.
3. Powder Blasting
Here, high-speed particles carve patterns in glass. It works well for deep channels and strong surfaces. However, it may damage soft materials.
4. Injection Molding
This method injects liquid plastic into a mold. It’s ideal for mass production. Devices are made quickly with consistent quality.
5. Laser Manufacturing
Laser cutting shapes materials by heat. It is precise and works with soft polymers. It allows custom design with quick changes.

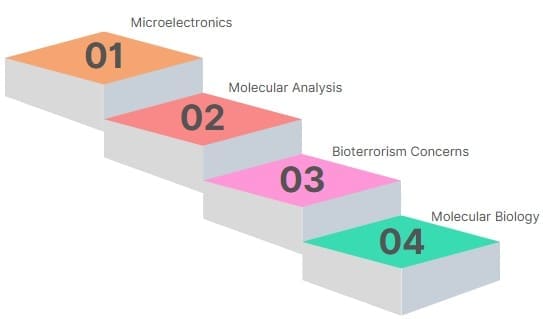

Key Drivers of Microfluidics Development
Several fields influenced the rise of microfluidics. Four major contributors played key roles:
1. Microelectronics
Silicon processing, like photolithography, shaped microfluidics fabrication. It allowed scientists to build fine channels and devices. The techniques came from semiconductor manufacturing.
2. Molecular Analysis
Molecular techniques like chromatography and capillary electrophoresis inspired microfluidics. These methods required precise fluid control. Lasers and optical systems added to this advancement.
3. Bioterrorism Concerns
Defense agencies funded projects to detect biological and chemical threats. Microfluidic chips became ideal for fast, portable testing.
4. Molecular Biology
Genomics and DNA research needed better tools. Microfluidics offered speed, sensitivity, and small reagent use. These benefits suited biological analysis well.
Why Use Microfluidics?
Microfluidics offer clear advantages over traditional systems. They use less sample and fewer reagents. This makes them cheaper and faster. They reduce testing time significantly.
The small size allows several tasks to run at once. This improves efficiency and speeds up results. Microfluidics devices also offer precise control over experiments.
Most systems can be automated. This allows large-scale use without constant supervision. These chips need minimal operator training. Automation also helps lower the chance of human error.
Why Are Microfluidic Devices Important?
Microfluidic devices are vital in healthcare and research. They can:
- Detect diseases early
- Monitor health conditions
- Analyze small fluid samples
- Offer fast results
- Reduce testing costs
They use small samples of blood, saliva, or other fluids. Because of this, they are less invasive for patients. They also work fast and can be used at home or in clinics.
Key Components in Microfluidic Devices
Microfluidic devices are made of several layered materials. Each layer has a job to do. These layers are bonded using adhesives and tapes.
Let’s look at the main parts:
1. Substrates (or Backings)
Substrates are the base layers in microfluidic devices. They provide support and shape. Some substrates are rigid, while others can stretch or bend.
Functions:
- Support the structure
- Provide a bonding surface
- Control the device’s strength
Common Types:
- BOPP (Biaxially Oriented Polypropylene): Clear, strong, easy to cut.
- PET (Polyethylene Terephthalate): Clear, rigid, resistant to water.
- Aluminum Foil: Malleable, keeps shape, good at conducting heat.
These materials are chosen based on how the device will be used.
2. Adhesives
Adhesives hold the layers together. They need to be stable under heat and chemicals.
Functions:
- Bond different layers
- Seal channels and wells
- Withstand temperature changes
Common Types:
- Silicone Adhesives: Stick to low-energy surfaces. Work well in PCR testing.
- Acrylate Adhesives: Stick to many surfaces. Cheaper and easier to use.
Each adhesive has pros and cons. The choice depends on the application and budget.
3. Liners
Liners protect the adhesive until it’s ready to be used. They help during storage and manufacturing.
Functions:
- Cover and protect adhesive
- Allow clean application
- Ensure sharp, clean edges
Common Types:
- Paper Liners: Cheap, good for printed labels, used in medical tapes.
- BOPP Liners: Strong and consistent, easy to process.
- PET Liners: Precise and rigid, best for high-accuracy work.
Liners often have a release coating so they peel off easily.

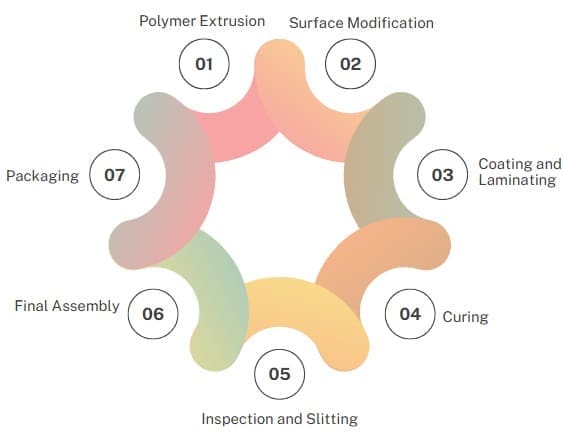

How Microfluidic Devices Are Made?
Making these devices involves several precise steps. Each step must be accurate to ensure the device works.
1. Polymer Extrusion
This is how plastic films are made. Pellets of plastic are melted and shaped into flat sheets.
Steps:
- Pellets go into a heated barrel
- A screw pushes the melted plastic forward
- Melt is spread into a film using a die
- The film cools on a roller or liner
This film becomes the base for other layers.
2. Surface Modification
The surface of the film may be treated. This improves how it bonds or how fluids flow.
Modifications Include:
- Making surfaces water-friendly (hydrophilic)
- Adding coatings to help adhesives stick
- Treating the surface to reduce friction
3. Coating and Laminating
The films are coated with adhesives and layered together.
Steps:
- Adhesive is applied to the film
- Layers are pressed together
- Heat or pressure may be used
Each layer must be aligned perfectly. This ensures channels and wells work correctly.
4. Curing
Some adhesives or coatings need to be cured. Curing uses heat or UV light.
Purpose:
- Strengthens the adhesive
- Locks the structure in place
- Makes layers more stable
5. Inspection and Slitting
After curing, the product is inspected. Machines check for dust, bubbles, or gaps.
The large sheets are then cut (slit) into smaller sizes.
Inspection Checks:
- Channel alignment
- Adhesive placement
- Film thickness
- Surface quality
Slitting must be very accurate to protect the channels inside.
6. Final Assembly
The small pieces are assembled into a finished device.
Assembly Includes:
- Adding plastic or metal covers
- Sealing the channels
- Cutting final shapes
This step often uses machines for speed and accuracy.
7. Packaging
Devices are packed in sterile packaging. They are labeled and stored in controlled environments.
Benefits of Reducing Size in Microfluidics
Less Fluid Needed
Smaller systems use less fluid and fewer reagents. This reduces waste and saves money. Rare or expensive samples last longer in small devices. Small-scale systems can split samples into many tests.
Better Heat Control
Tiny volumes mean heat moves quickly through the system. Temperature changes happen fast. This helps avoid overheating or dangerous reactions. Exothermic reactions stay safe and controlled.
Efficient Reactions
Microfluidic devices mix chemicals quickly. Faster mixing speeds up chemical reactions. Reactions become more accurate and consistent. This improves scientific results and reduces trial times.
Better Reaction Monitoring
Shorter reaction times help keep peaks sharp in testing. For example, during separations, peaks stay narrow and well-defined. This improves sensitivity and accuracy.
Applications in Healthcare and Medicine
Microfluidics now play a big role in medical research. Scientists use them in diagnostics, drug delivery, and tissue growth. Here are some recent studies and trends:
1. Drug Delivery and Cell Studies
In 2018, researchers studied microparticles made using microfluidics. These particles could carry drugs or support tissue growth. They also helped in 3D cell modeling and biomolecule sensing.
2. Eye Tissue Engineering
Another team worked on devices to replace eye tissue. They found additive manufacturing promising. It helped design implants that mimic natural tissues.
3. Lab-on-a-Chip Devices
In 2014, experts reviewed lab-on-chip use in clinics. They saw a gap in adoption but suggested planned strategies for growth.
4. Molecular Diagnostics
A different study explored disease detection with microfluidics. Most tools still test only one disease. Researchers push for chips that test several diseases at once.
5. Neurobiology Applications
Microfluidics also support brain studies. They let scientists grow and observe neurons easily. These systems offer detailed control over cell environments.
6. Immune Sensors
In 2005, experts reviewed immune sensors using microfluidics. Most were made from glass, polymers, or silicone. Fluorescence was the common detection method.
7. PDMS-Based Devices
In 2002, researchers focused on PDMS material for biomedical chips. These devices integrated sensors, heaters, and electrodes. PDMS chips showed good flexibility and compatibility.
Final Words
Microfluidics manufacturing combines chemistry, physics, and engineering at a tiny scale. It offers faster reactions, lower costs, and high precision. These systems are portable, customizable, and powerful.
With materials like PDMS, complex chip systems are now easier to build. Microfluidics is reshaping medicine, chemistry, and many other fields.
As research continues, more smart and integrated devices will emerge. Microfluidics is not just a lab tool—it’s the future of precise, portable science.
