Industrial facilities face numerous risks that threaten personnel safety, environmental protection, and operational efficiency. A hazard and operability study (HAZOP) provides the systematic framework organizations need to identify and mitigate these risks before they escalate into catastrophic incidents.

This comprehensive methodology has become the global standard for process hazard analysis across chemical, pharmaceutical, oil and gas, and manufacturing industries. Understanding HAZOP principles enables safety professionals to protect lives, preserve assets, and maintain regulatory compliance while optimizing operational performance.

What is a Hazard and Operability Study (HAZOP)?

A hazard and operability study (HAZOP) is a systematic technique for identifying and determining potential hazards and operability problems in processes, involving a multidisciplinary team thoroughly examining process designs using guide words to probe possible deviations from normal operations.

This structured approach focuses on answering two critical questions: “What can go wrong?” and “What are the consequences?” The methodology systematically examines each component of a process to identify potential deviations that could lead to hazardous situations or operational difficulties.

Kevin Clay

Public, Onsite, Virtual, and Online Six Sigma Certification Training!

  • We are accredited by the IASSC.
  • Live Public Training at 52 Sites.
  • Live Virtual Training.
  • Onsite Training (at your organization).
  • Interactive Online (self-paced) training,

Core Objectives of HAZOP Studies

HAZOP methodology serves multiple essential purposes in industrial safety management:

Primary Safety Objectives:

  • Hazard identification across all process systems
  • Risk assessment for identified potential incidents
  • Safeguard evaluation of existing protective measures
  • Recommendation development for risk reduction strategies

Operational Excellence Goals:

  • Process optimization through deviation analysis
  • Equipment reliability improvement identification
  • Operational efficiency enhancement opportunities
  • Maintenance planning based on failure modes

The HAZOP Process: Step-by-Step Methodology

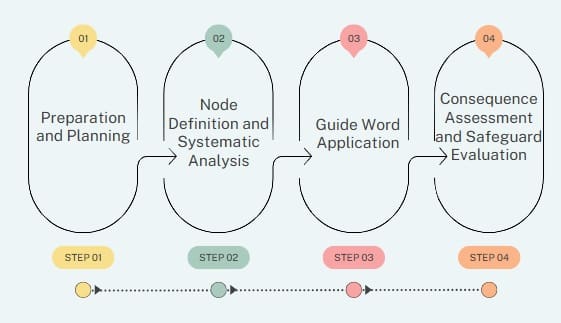

HAZOP Process
HAZOP Process

The technique breaks the overall complex design of the process into simpler sections called nodes which are individually reviewed by a suitably experienced multi-disciplinary team during a series of meetings.

Phase 1: Preparation and Planning

Successful HAZOP studies begin with thorough preparation that establishes the foundation for effective analysis.

Documentation Assembly:

  • Process flow diagrams (PFDs) showing major equipment
  • Piping and instrumentation diagrams (P&IDs) with detailed connections
  • Process descriptions explaining normal operations
  • Operating procedures and safety protocols
  • Material safety data sheets (MSDS) for all chemicals

Team Formation: The HAZOP team requires diverse expertise to ensure comprehensive analysis:

RoleResponsibilitiesRequired Expertise
Team LeaderFacilitate sessions, maintain focusHAZOP methodology, leadership
Process EngineerExplain design intent, normal operationsProcess technology, design
Operations RepresentativeProvide operational insightsDay-to-day operations, procedures
Maintenance SpecialistEquipment failure modes, reliabilityMechanical systems, maintenance
Safety ProfessionalRegulatory requirements, safety systemsIndustrial safety, risk assessment
Instrumentation EngineerControl systems, safety interlocksInstrumentation, automation

Phase 2: Node Definition and Systematic Analysis

The HAZOP methodology involves breaking down a system or process into smaller units called nodes, with team members systematically analyzing each node to identify deviations from intended design intent or operation.

Node Selection Criteria:

  • Equipment boundaries (reactors, distillation columns, heat exchangers)
  • Process changes (phase changes, chemical reactions)
  • Control points (major control loops, safety systems)
  • Interface locations (between different process units)

Phase 3: Guide Word Application

Guide words are carefully selected terms like “more,” “less,” “no,” “reverse,” and “other than” that prompt teams to consider specific types of deviations from process parameters including flow, temperature, pressure, level, and composition.

Standard HAZOP Guide Words:

Guide WordMeaningApplication Examples
NO/NOT/NONEComplete absenceNo flow, no pressure, no reaction
MOREQuantitative increaseHigher temperature, excess flow
LESSQuantitative decreaseLower pressure, reduced concentration
AS WELL ASAdditional activityContamination, side reactions
PART OFQualitative decreaseWrong composition, incomplete reaction
REVERSEOpposite directionBackflow, reverse rotation
OTHER THANComplete substitutionWrong material, different conditions

Phase 4: Consequence Assessment and Safeguard Evaluation

For each identified deviation, teams systematically evaluate potential consequences and existing protective measures.

Consequence Categories:

  • Personnel safety impacts (injury, fatality risk)
  • Environmental effects (releases, contamination)
  • Asset damage (equipment failure, property loss)
  • Business interruption (production loss, reputation)

The HAZOP team identifies design and operating features implemented to prevent deviations, causes, or consequences, including engineering or procedural barriers that should be listed and evaluated.

Essential Elements of HAZOP Documentation

Comprehensive documentation ensures HAZOP findings translate into actionable safety improvements and regulatory compliance.

HAZOP Worksheet Structure

Every HAZOP study produces detailed worksheets capturing analysis results:

Standard Worksheet Columns:

  • Node description and boundaries
  • Guide word and parameter combination
  • Possible deviations from design intent
  • Potential causes of each deviation
  • Consequences if deviation occurs
  • Existing safeguards and protection layers
  • Recommendations for additional protection
  • Action items with assigned responsibilities

Risk Ranking and Prioritization

Teams assign risk levels to identified scenarios using established criteria:

Risk LevelConsequence SeverityLikelihoodPriority
HIGHMajor injury/fatality, significant environmental impactProbable occurrenceImmediate action
MEDIUMMinor injury, moderate environmental impactPossible occurrenceAddress within 6 months
LOWFirst aid injury, minimal environmental impactUnlikely occurrenceAddress during next turnaround

Also Read: Plan for Every Part

Industries and Applications for HAZOP Studies

HAZOP methodology applies across diverse industrial sectors, each with specific considerations and regulatory requirements.

Chemical and Petrochemical Industry

Chemical processing facilities utilize HAZOP for complex reaction systems, separation processes, and hazardous material handling.

Typical Applications:

  • Reactor systems with exothermic reactions
  • Distillation columns with flammable materials
  • Storage tank farms containing hazardous chemicals
  • Loading/unloading operations for transportation

Oil and Gas Operations

HAZOP serves as a crucial component of Process Hazard Analysis (PHA), mandated by occupational safety and health regulations for oil and gas facilities.

Critical Focus Areas:

  • Offshore platforms with complex processing systems
  • Refineries processing crude oil and derivatives
  • Pipeline systems transporting hydrocarbons
  • Gas processing plants handling natural gas

Pharmaceutical Manufacturing

Pharmaceutical companies employ HAZOP to ensure product quality while maintaining personnel safety during active ingredient production.

Special Considerations:

  • Containment systems for potent compounds
  • Cross-contamination prevention between products
  • Sterile processing environments
  • Waste treatment systems for pharmaceutical waste

Power Generation Facilities

Power plants use HAZOP analysis for boiler systems, turbines, and fuel handling operations.

Key Applications:

  • Steam generation systems with high-pressure operations
  • Fuel handling for coal, natural gas, or biomass
  • Cooling water systems and environmental protection
  • Electrical systems and safety interlocks

Benefits of Implementing HAZOP Studies

Organizations investing in comprehensive HAZOP programs realize significant returns through improved safety performance and operational excellence.

Safety Performance Improvements

Incident Prevention: HAZOP studies identify potential accident scenarios before they occur, enabling proactive risk management rather than reactive responses to incidents.

Regulatory Compliance: Systematic hazard identification helps organizations meet increasingly stringent safety regulations while demonstrating due diligence to regulatory authorities.

Insurance Benefits: Insurance providers often offer premium reductions for facilities demonstrating comprehensive risk management through HAZOP studies.

Operational Excellence Advantages

Process Optimization: HAZOP analysis frequently uncovers opportunities to improve process efficiency, reduce waste, and optimize resource utilization.

Equipment Reliability: Identifying potential failure modes enables predictive maintenance strategies that reduce unplanned downtime and extend equipment life.

Training Enhancement: HAZOP findings inform operator training programs, ensuring personnel understand potential risks and appropriate responses.

Financial Returns on Investment

Cost Avoidance: Preventing single major incident often justifies entire HAZOP program costs through avoided cleanup expenses, legal fees, and business interruption losses.

Productivity Gains: Process improvements identified during HAZOP studies frequently generate ongoing productivity benefits that exceed study costs.

HAZOP Study Challenges and Best Practices

Even experienced teams encounter obstacles during HAZOP implementation. Understanding common challenges and proven solutions enhances study effectiveness.

Common Implementation Challenges

Team Dynamics Issues: Large multidisciplinary teams can struggle with communication, conflicting priorities, and meeting coordination difficulties.

Solution: Establish clear roles, maintain focused agendas, and use experienced facilitators to guide discussions productively.

Scope Creep Problems: HAZOP studies can expand beyond original boundaries as teams discover interconnected systems requiring analysis.

Solution: Define study boundaries clearly upfront and document scope changes with appropriate management approval.

Documentation Overload: Comprehensive HAZOP studies generate extensive documentation that can overwhelm follow-up action planning.

Solution: Prioritize recommendations based on risk levels and establish clear accountability for implementation.

Technology Integration Best Practices

Software Tools: Modern HAZOP software streamlines documentation, enables real-time collaboration, and facilitates report generation.

Popular HAZOP Software Features:

  • Template libraries for common process types
  • Risk ranking calculators and matrices
  • Action tracking systems with reminder capabilities
  • Report generation tools for regulatory submissions

Digital P&ID Integration: Advanced software connects directly with computer-aided design systems, ensuring HAZOP analysis uses current process designs.

Also Read: What is Green Supply Chain Management?

Advanced HAZOP Techniques and Methodologies

Experienced practitioners employ sophisticated techniques that enhance traditional HAZOP methodology effectiveness.

Quantitative Risk Assessment Integration

Traditional HAZOP provides qualitative risk assessment, but organizations increasingly integrate quantitative techniques for more precise risk evaluation.

Quantitative Enhancement Methods:

  • Fault tree analysis for complex failure scenarios
  • Event tree analysis for consequence modeling
  • Monte Carlo simulation for uncertainty analysis
  • Layer of protection analysis (LOPA) for safeguard effectiveness

Continuous HAZOP Programs

Rather than conducting one-time studies, leading organizations implement ongoing HAZOP programs that evolve with process changes.

Continuous Program Elements:

  • Scheduled reviews triggered by time intervals or process modifications
  • Management of change integration requiring HAZOP updates
  • Performance monitoring tracking recommendation implementation
  • Lessons learned incorporation from incidents and near-misses

HAZOP for New Technologies

Emerging technologies require adapted HAZOP approaches that address novel risks and operational characteristics.

Special Considerations for:

  • Renewable energy systems with intermittent operations
  • Advanced materials with unknown long-term behavior
  • Automated systems with complex control logic
  • Biotechnology processes with living organisms

Regulatory Requirements and Standards

HAZOP studies must comply with various international standards and regulatory requirements that continue evolving.

International Standards

IEC 61882 Standard: The International Electrotechnical Commission provides comprehensive guidance for HAZOP study conduct and documentation.

Key Requirements:

  • Team composition specifications and qualifications
  • Documentation standards for worksheets and reports
  • Review cycles and update triggers
  • Quality assurance measures for study integrity

Regional Regulatory Frameworks

United States:

  • OSHA Process Safety Management (PSM) requires process hazard analysis
  • EPA Risk Management Program (RMP) mandates hazard assessment
  • API Standards provide industry-specific guidance

European Union:

  • Seveso III Directive requires major hazard identification
  • ATEX Directive addresses explosive atmosphere risks
  • REACH Regulation impacts chemical risk assessment

Other Regions:

  • Australia: AS/NZS 4360 risk management standards
  • Canada: Provincial occupational health regulations
  • Asia-Pacific: Various national and regional requirements

Also Read: What is E-waste Management?

HAZOP continues evolving as industries adopt new technologies and face changing risk landscapes.

Artificial Intelligence Integration

AI technologies increasingly support HAZOP studies through automated analysis and pattern recognition.

Emerging AI Applications:

  • Natural language processing for document analysis
  • Machine learning for deviation prediction
  • Expert systems for recommendation development
  • Automated reporting generation and formatting

Digital Twin Technology

Digital process models enable dynamic HAZOP analysis that considers real-time operating conditions.

Digital Twin Benefits:

  • Real-time monitoring of identified HAZOP scenarios
  • Predictive analysis of deviation likelihood
  • Scenario simulation for training and validation
  • Continuous updating as processes change

Remote and Virtual HAZOP Studies

Global organizations increasingly conduct virtual HAZOP studies using collaborative technologies, especially following pandemic-driven changes.

Virtual Study Advantages:

  1. Expert access regardless of geographic location
  2. Cost reduction through eliminated travel expenses
  3. Schedule flexibility for international team coordination
  4. Digital collaboration tools enhancing documentation

Final Words

Transform your approach to industrial safety through systematic hazard and operability studies. Your commitment to comprehensive risk management will protect lives, preserve the environment, and ensure sustainable business operations.
