Design resolution classifies how severely effects are confounded (aliased) in a fractional factorial DOE, using Roman numerals (III, IV, V). It matters because a fractional factorial design deliberately runs fewer combinations than a full factorial, which means some effects become mathematically indistinguishable from others, and the resolution tells you exactly which ones. In a Resolution III design, main effects are aliased with two-factor interactions.
However, In a Resolution IV design, main effects are clean, but some two-factor interactions are aliased with each other. In a Resolution V design, both main effects and two-factor interactions are clean, aliased only with higher-order interactions that are rarely significant in practice. The practical rule: use the highest resolution your run budget allows, since higher resolution means less ambiguity in the results.
Quick Reference Table
| Resolution | What’s Aliased | What’s Clean | Typical Use |
| Resolution III | Main effects aliased with 2-factor interactions | Main effects not aliased with each other | Aggressive screening with many factors and very few runs |
| Resolution IV | Some 2-factor interactions aliased with each other; main effects aliased with 3-factor interactions | Main effects clean from all 2-factor interactions | The most common practical choice for screening |
| Resolution V | 2-factor interactions aliased with 3-factor interactions; main effects aliased with 4-factor interactions | Main effects and all 2-factor interactions clean | Characterization/optimization when 2-factor interactions matter |
| Foldover Design | N/A (a follow-up design, not a resolution level) | Removes aliasing between main effects and 2-factor interactions | Run after a Resolution III design when results are ambiguous |
| Full Factorial | Nothing aliased | Everything estimable | When run budget allows testing every combination |
Table of contents
Key Takeaways
- Design resolution tells you which effects you can’t tell apart, not whether your experiment is valid. A Resolution III design is still a legitimate design; it just requires knowing what its confounding limits are before interpreting results.

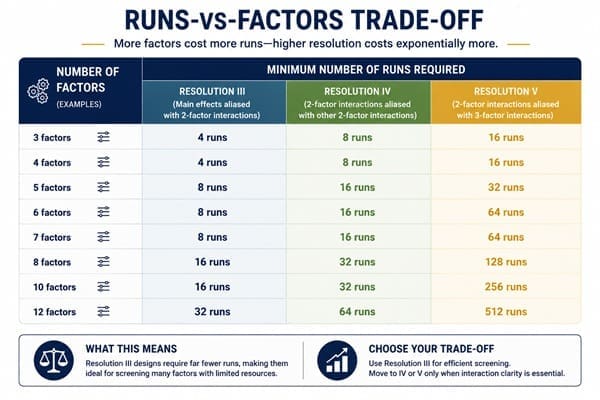

- Higher resolution generally requires more runs. Resolution III designs use the fewest runs; Resolution V designs require substantially more, which is the core trade-off practitioners are managing.
- Resolution IV is the most common practical compromise. It keeps main effects clean, the results most practitioners care about most, while still using significantly fewer runs than a full factorial or Resolution V design.
- A foldover design can upgrade a Resolution III design to Resolution IV after the fact, without having to discard the original data or start over.
- The resolution is determined by the design’s “defining relation,” specifically the length of its shortest term, which is a detail practitioners rarely need to calculate by hand since DOE software determines it automatically.
- Higher-order interactions (three-factor and above) are rarely practically significant, which is the underlying assumption that makes Resolution III and IV designs useful despite their confounding.
- Choosing a resolution is a trade-off decision, not a fixed rule. The right choice depends on how many factors you’re screening, how many runs you can afford, and how much you already suspect about interaction effects.
What Is Design Resolution?
Design resolution describes how much the effects in a fractional factorial design are aliased (also called confounded) with other effects. When you run a fractional factorial design instead of a full factorial, you deliberately test fewer combinations, which means the design can no longer estimate every effect independently. Some effects get mathematically combined, and the resolution tells you exactly which ones.
Design resolution is written using Roman numerals, typically as a subscript on the design notation (for example, a 2^(7-4) design with resolution III is written 2_III^(7-4)). The resolution of a design is given by the length of the shortest word in the defining relation, the mathematical rule that determines which combinations of factor settings are included in the reduced design.
Public, Onsite, Virtual, and Online Six Sigma Certification Training!
- We are accredited by the IASSC.
- Live Public Training at 52 Sites.
- Live Virtual Training.
- Onsite Training (at your organization).
- Interactive Online (self-paced) training,
Why Does Design Resolution Matter?
Fractional factorial designs exist because testing every possible combination of factors (a full factorial) becomes impractical fast. At times, the number of factors to be investigated in a screening experiment is so large that even running a fractional factorial design is impractical, which is exactly the situation resolution helps manage: it quantifies what you’re giving up in exchange for the runs you’re saving.
The higher the resolution of a design, the less confounding there is. This matters practically because confounded effects cannot be separated statistically.
If factor A is confounded with the three-way interaction BCD, the estimated effect for A is the sum of the effect of A and the effect of BCD, and you cannot determine whether a significant result is because of A, because of BCD, or because of both. Knowing your design’s resolution tells you, before you even run the experiment, exactly which conclusions you will and won’t be able to draw cleanly from the results.

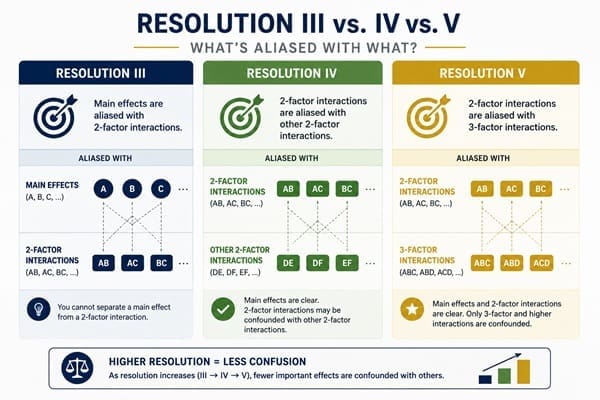

The Three Common Resolutions Explained
