A smart grid system is an electricity network that uses digital technology to improve efficiency, reliability, security, and sustainability of the power system. Think of it as an upgrade to the traditional electrical grid, making it more intelligent and responsive.
Table of contents
What is a Smart Grid?
A smart grid is an advanced electrical network designed to improve the efficiency, reliability, and sustainability of electricity distribution. It uses digital technologies, such as communication systems, sensors, and automated control, to monitor and manage the flow of electricity from power plants to end consumers.
Unlike traditional grids, a smart grid enables real-time communication between utility providers and consumers, optimizing electricity generation, transmission, and consumption.

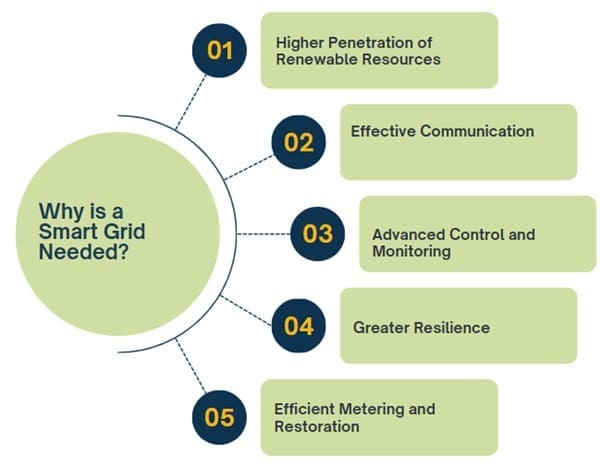

Why is a Smart Grid Needed?
The need for smart grids has become more pressing due to several reasons:
- Higher Penetration of Renewable Resources: Smart grids enable better integration of renewable energy sources like solar and wind.
- Effective Communication: Facilitates communication from generation to consumers.
- Advanced Control and Monitoring: Allows for better management of energy resources.
- Greater Resilience: Enhances the grid’s ability to withstand natural disasters and attacks.
- Efficient Metering and Restoration: Smart grids support automated metering and faster power restoration.
Pillars of Smart Grid
The smart grid is based on four essential pillars:
- Transmission Optimization: Ensures energy is distributed efficiently across long distances.
- Demand Side Management: Manages consumer demand to prevent overloads.
- Distribution Optimization: Optimizes local distribution of energy.
- Asset Optimization: Maximizes the use of energy generation and distribution assets.

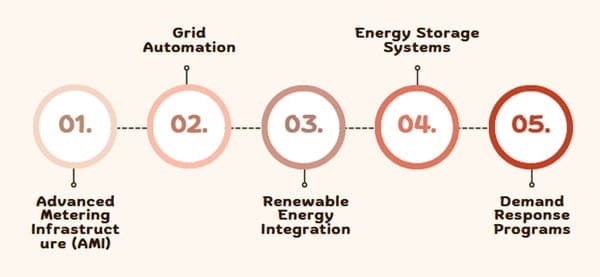

Key Components of a Smart Grid
- Advanced Metering Infrastructure (AMI)
AMI systems enable real-time communication between consumers and utilities. Smart meters monitor electricity usage and send data back to the utility. This helps with accurate billing, energy management, and facilitates demand-response programs. - Grid Automation
Grid automation systems, like Supervisory Control and Data Acquisition (SCADA) and Advanced Distribution Management Systems (ADMS), monitor and control grid operations. They automatically detect faults, optimize energy flow, and ensure grid stability. This reduces outage times and enhances system reliability. - Renewable Energy Integration
Smart grids facilitate the smooth integration of renewable energy sources, such as solar and wind. They can balance fluctuations in power generation from these variable sources and make better use of renewable energy by storing excess power in batteries or utilizing smart inverters. - Energy Storage Systems
Energy storage, such as batteries, plays a critical role in smart grids. They store excess energy generated during low demand periods and release it when demand peaks. This helps balance the supply-demand equation and ensures grid stability. - Demand Response Programs
Smart grids allow consumers to adjust their energy use based on price signals or grid needs. This process helps reduce peak demand, preventing grid overloads and lowering energy costs. It also supports smart appliances and electric vehicles (EVs), encouraging energy-saving behaviors.

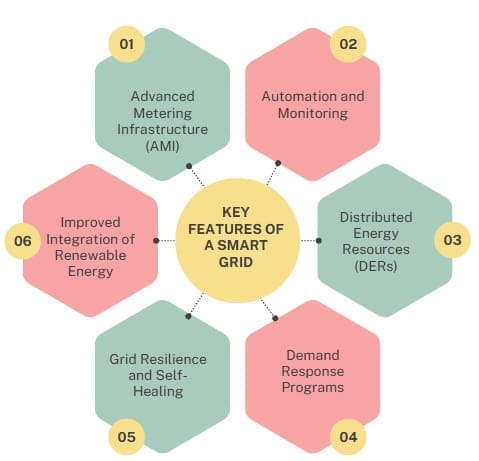

Key Features of a Smart Grid
- Advanced Metering Infrastructure (AMI): Smart grids use smart meters to monitor electricity consumption in real-time. These meters send data to utilities and allow for accurate billing, remote meter reading, and energy management.
- Automation and Monitoring: Automated systems and sensors continuously monitor electricity flow. This helps identify faults and respond quickly to any disruptions, improving the grid’s overall reliability.
- Distributed Energy Resources (DERs): A smart grid can integrate renewable energy sources like solar panels, wind turbines, and energy storage systems. These resources help manage energy supply, reduce grid reliance, and increase energy sustainability.
- Demand Response Programs: Consumers can adjust their energy use based on real-time pricing. This helps balance electricity demand during peak periods, reducing the risk of blackouts and improving grid stability.
- Grid Resilience and Self-Healing: Smart grids can automatically detect and isolate faults. This self-healing process restores service quickly, reducing downtime and increasing the grid’s resilience to natural disasters or attacks.
- Improved Integration of Renewable Energy: The smart grid enhances the integration of intermittent renewable energy sources. It monitors and controls energy flows to ensure a stable and reliable electricity supply.
How a Smart Grid Works?
A smart grid uses modern communication and control technologies to optimize the electricity system. It begins with electricity generation, which is then transmitted through high-voltage lines to local distribution networks. The grid’s advanced technologies allow for real-time monitoring, which helps prevent overloads, identify faults, and optimize power flow.
Consumers, equipped with smart meters, can track their energy use and make adjustments based on real-time pricing. This system helps utilities maintain a balanced and efficient grid. Moreover, the ability to integrate various energy sources, including solar, wind, and even electric vehicles (EVs), makes the smart grid a vital part of the modern energy landscape.

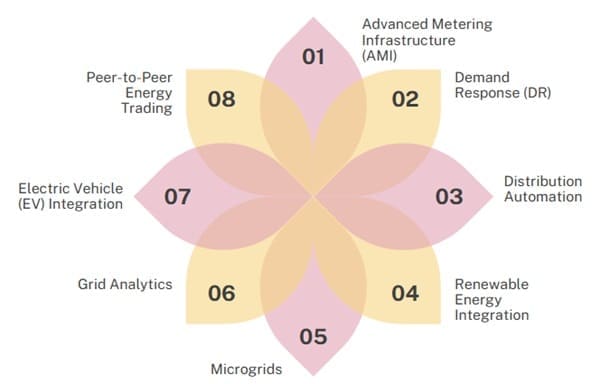

Smart Grid Technologies
Advanced Metering Infrastructure (AMI): These meters gather real-time data, allowing utilities to monitor consumption patterns and perform remote readings. They support demand response programs, providing more control over energy use.
Demand Response (DR): DR programs allow consumers to reduce energy consumption during peak periods. By sending signals to appliances or directly engaging consumers, the grid helps balance supply and demand efficiently.
Distribution Automation: Smart grids employ automated devices like reclosers and switches. These devices quickly detect faults, isolate affected areas, and restore power more efficiently. This improves the grid’s reliability and reduces the time customers are without power.
Renewable Energy Integration: Smart grids make it easier to integrate renewable energy sources, such as solar and wind. They balance the variable generation from these sources with consumer demand, ensuring consistent and reliable energy supply.
Microgrids: Microgrids are small-scale, self-contained grids that can operate independently or alongside the main grid. They are especially useful in areas with unreliable grid access, such as remote or disaster-prone regions.
Grid Analytics: Smart grids collect vast amounts of data from sensors and devices. Advanced analytics processes this data, helping utilities improve grid operations, forecast demand, and optimize resources.
Electric Vehicle (EV) Integration: As EVs become more popular, smart grids are key in managing their charging infrastructure. They ensure efficient load distribution and prevent grid overload during high-demand periods.
Peer-to-Peer Energy Trading: Smart grids facilitate energy trading between consumers. Those with excess energy, such as from solar panels, can sell it directly to others, promoting decentralized energy systems.
Smart Grid vs. Traditional Power Grid
Traditional Power Grid
The traditional power grid, built many decades ago, is based on a one-way flow of electricity. Power plants generate electricity and send it to consumers through high-voltage transmission lines. Once the electricity reaches the distribution network, it travels to consumers.
Key features of the traditional grid include:
- One-way Power Flow: Electricity flows from the power plants to consumers, without any feedback from consumers.
- Limited Monitoring: There is minimal real-time visibility into the grid’s status, making it hard to respond quickly to faults or changes in demand.
- Inefficiency: Power losses are common, especially over long distances, and the grid cannot adapt to demand changes in real-time.
Smart Grid
In contrast, a smart grid introduces two-way communication and automation to the electricity network. It enhances the traditional grid by enabling real-time monitoring, improved efficiency, and greater flexibility in power distribution.
Key improvements of a smart grid:
- Two-way Power Flow: The smart grid enables consumers to produce and feed back energy into the grid, supporting renewable energy integration.
- Advanced Monitoring and Control: Real-time monitoring improves system reliability and reduces energy loss.
- Integration of Renewable Energy: Smart grids enable the integration of clean energy sources like wind and solar, which traditional grids struggle to manage efficiently.
- Demand Response: Consumers can adjust their usage based on real-time energy prices, reducing peak demand and improving grid balance.
New Technologies in Smart Grid Development
The smart grid continues to evolve, with new technologies shaping its future:
- Advanced Metering Infrastructure (AMI): Smart meters provide real-time energy data, enabling efficient billing and demand response.
- Grid Sensors and Monitoring: Sensors collect data on voltage, power flow, and faults, helping utilities optimize grid performance.
- Distribution Automation: Automated systems improve grid resilience and reduce outages by swiftly detecting and isolating faults.
- Energy Storage: Batteries and other storage technologies help stabilize the grid, store excess energy, and manage demand fluctuations.
- Microgrids: Localized, self-sustaining grids that can operate independently during outages, enhancing energy resilience.
- Demand Response Technologies: Consumers are encouraged to reduce energy consumption during peak times, balancing grid demand.
Benefits of Smart Grids
- Improved Reliability
Smart grids use advanced sensors and automation to detect and resolve faults in real time. This minimizes downtime, ensuring that power outages are quickly identified and restored. As a result, customers experience more reliable service. - Enhanced Energy Efficiency
Smart grids optimize the generation, distribution, and consumption of electricity. This reduces energy losses, maximizes the use of renewable energy, and improves overall grid efficiency. By using predictive analytics, utilities can also optimize grid operations, saving energy and reducing waste. - Integration of Renewable Energy
Renewable energy sources, like solar and wind, often produce energy intermittently. Smart grids integrate these sources by using technology that balances the fluctuations in power generation. This helps reduce reliance on fossil fuels and supports a greener, more sustainable energy system. - Grid Flexibility and Resilience
Smart grids support bi-directional energy flow, allowing consumers to become “prosumers” who can generate, store, and sell energy. This flexibility helps reduce stress on the grid and promotes local energy independence. Additionally, smart grids can adapt to natural disasters or faults, ensuring faster recovery times. - Improved Security
Smart grids incorporate robust cybersecurity measures to protect against cyberattacks and physical threats. They use real-time data monitoring to identify vulnerabilities and take proactive action to secure the grid infrastructure. - Cost Savings
Smart grids help reduce operational costs by enhancing grid efficiency and minimizing energy losses. By using demand response strategies, utilities can avoid the need for costly infrastructure upgrades. Consumers can also save money by adjusting their energy usage patterns and benefiting from lower energy costs. - Better Customer Engagement
Consumers can track their energy usage in real time, which helps them make informed decisions. This allows them to manage their energy consumption more effectively, leading to lower electricity bills and reduced environmental impact. - Environmental Sustainability
By enabling the integration of renewable energy and optimizing energy management, smart grids help reduce greenhouse gas emissions. They promote energy-saving behaviors and the use of cleaner energy, supporting a transition toward a low-carbon economy.
Challenges in Implementing Smart Grids
- Infrastructure and Integration
Upgrading the existing grid infrastructure to accommodate smart grid technologies can be expensive and complicated. It requires careful planning to integrate new components like advanced meters, communication systems, and control networks. - Data Management and Security
Smart grids generate large amounts of data from various sensors. Efficient data management and analysis are crucial to prevent system overload. Additionally, ensuring the privacy and security of sensitive information transmitted across the grid is essential. - Interoperability and Standardization
Smart grids involve multiple technologies from different vendors. Ensuring that these components work together seamlessly requires standardization of communication protocols and data formats. - Grid Resilience and Reliability
Smart grids are vulnerable to cyberattacks, equipment failures, and natural disasters. Ensuring their resilience against such threats is crucial to maintain a stable power supply. - Consumer Engagement
Educating consumers about smart grids and encouraging them to actively participate in energy-saving programs is essential. Many people may be reluctant to adopt new technologies or alter their consumption habits. - Regulatory and Policy Frameworks
Creating supportive policies and regulations for smart grid adoption is essential. Governments need to ensure that regulations address security, privacy, and fair pricing while promoting investment in grid infrastructure. - Financial Considerations
The upfront costs of implementing smart grid technologies are high. Utilities must weigh the long-term financial benefits against the initial investments needed for infrastructure upgrades and system integration.
Why Implement Smart Grids?
Smart grids offer a wide range of benefits for utilities, consumers, and the environment. They enhance reliability, reduce energy waste, and integrate renewable energy sources. The key motivations for adopting smart grid technology include:
Reliability
Smart grids enhance grid reliability by detecting and responding to faults automatically. This ensures that power is delivered without significant outages or disruptions.
Economic Efficiency
By reducing energy losses and improving grid management, smart grids lower operational costs. They also help delay expensive infrastructure upgrades.
Environmental Impact
Smart grids promote the integration of renewable energy, reducing greenhouse gas emissions. They also increase energy efficiency, which reduces the overall environmental footprint of the power grid.
Customer Empowerment
Consumers benefit from greater transparency in energy usage, allowing them to make informed decisions and reduce electricity costs. They also have the opportunity to participate in new markets, like virtual power plants.
Final Words
A smart grid is an advanced electrical system that uses digital technologies to optimize the generation, transmission, and consumption of electricity. It provides a more efficient, reliable, and sustainable energy solution compared to traditional grids.
With the integration of renewable energy, energy storage, demand response, and self-healing capabilities, the smart grid is poised to play a pivotal role in the future of electricity distribution. As technology advances, the smart grid will continue to evolve, offering more opportunities for efficient energy management and consumer engagement.
