Dot Plot – Simple Guide With Examples

A dot plot is a simple chart that shows each data point as a single dot on a number line. It matters because it’s the easiest way to see the shape of a small data set, where the values cluster, where they spread out, and where any outliers sit, without hiding any single value inside a bar or a box the way other charts do.

In practice, you draw a number line that covers your data’s range, then place one dot for each value, stacking dots when values repeat. Dot plots work best with small data sets, roughly under 50 points; once you have more data than that, a histogram or box plot usually shows the pattern more clearly.

Quick Reference Table

Term	What It Means	Why It Matters	Example
Dot Plot	A chart showing each value as a dot on a number line	Shows every single data point, with nothing hidden	Plotting 20 cycle-time measurements
Wilkinson Dot Plot	Shows individual points of continuous, numeric data, like a histogram	The most common type for Six Sigma data	Plotting 20 part weights in grams
Cleveland Dot Plot	Compares a value across different categories	A clean alternative to a bar chart	Comparing average wait time across 5 store locations
Histogram	Groups data into “buckets” and shows bars	Better for larger data sets	Plotting 500 part weights
Box Plot	Summarizes data using a five-number summary	Better for comparing several groups at once	Comparing weight distributions across 4 machines

Key Takeaways

• A dot plot shows every data point, with nothing hidden or grouped. Each dot is one real value, which is what makes small data sets easy to read at a glance.
• There are two main types, and they are not the same thing. A Wilkinson dot plot shows continuous, numeric data, similar to a histogram. A Cleveland dot plot compares values across categories, similar to a bar chart.
• Dot plots work best with small data sets, generally under 50 points. Larger data sets are usually easier to read as a histogram.
• A dot plot uses less visual “ink” than a bar chart. Because it’s just dots on a line, it can look cleaner and less cluttered, especially with several categories.
• Dot plots are easy to build by hand or in Excel, which makes them a practical choice for a quick look at Measure-phase data before deeper analysis.
• Dot plots are not the same as scatter plots. A dot plot shows one variable on a single number line; a scatter plot shows the relationship between two variables on two axes.
• The existing description of a dot plot as showing “qualitative” data is incorrect. A standard (Wilkinson) dot plot shows quantitative, numeric data, the same type of data a histogram displays.

What Is a Dot Plot?

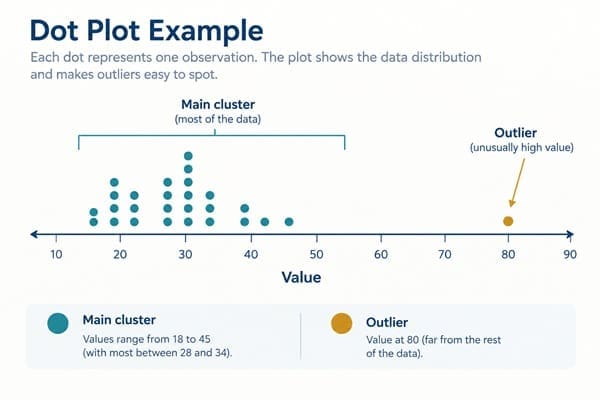

A dot plot (also called a dot chart or strip plot) is a simple chart that shows each value in a data set as a single dot placed on a number line. When two or more values are the same, or close together, their dots stack up, so the height of a stack shows how often that value shows up.

Dot plots are best known for working well with small data sets. Because every value gets its own dot, a large data set quickly becomes too crowded to read clearly, which is exactly the situation a histogram or box plot is built to handle instead.

Wilkinson Dot Plot vs. Cleveland Dot Plot: What’s the Difference?

This is the single most confused part of “dot plot,” and it’s worth getting right, since the two types serve different purposes.

Type	What It Shows	Closest Comparison	Best For
Wilkinson Dot Plot	Individual points of continuous, numeric data	A histogram	Showing the shape of a small numeric data set (weights, times, measurements)
Cleveland Dot Plot	A value plotted for each of several categories	A bar chart	Comparing a number across categories (locations, departments, products)

The Wilkinson dot plot, named for statistician Leland Wilkinson, shows how numeric data is spread out, the same job a histogram does, but without grouping values into “buckets.” Each dot keeps its exact value visible.

The Cleveland dot plot, named for statistician William S. Cleveland, works more like a bar chart. Instead of a bar’s height or length showing a value, a dot’s position on the line shows it. This makes it easier to compare many categories in a small space without the visual clutter that a lot of bars can create.

Also Read: Scatter Plot

Why Does a Dot Plot Matter in a Six Sigma Project?

In a Six Sigma project, a dot plot gives a Measure-phase team a fast, honest first look at a small batch of data before running deeper statistical tests. Because every value is shown as its own dot, nothing is hidden the way it can be inside a bar or a box.

This matters most in three situations:

1. Spotting outliers. A single dot sitting far away from the rest of the group is easy to see immediately, before any calculation is done.
2. Seeing the real shape of the data. Clusters, gaps, and clumps in the data show up naturally, since the dots simply pile up where the data actually is.
3. Working with a small sample. Early in a project, before a large sample has been collected, a dot plot can still show something useful, while a histogram with too few data points can look sparse and misleading.

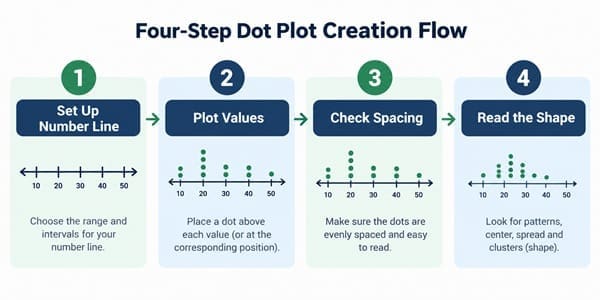

How Do You Make a Dot Plot?

1. Set Up Your Number Line

Draw a horizontal line and mark it with a scale that covers your full range of values, from your smallest number to your largest. Use whatever unit fits your data: minutes, pounds, millimeters, or defect counts.

2. Plot Each Value as a Dot

For every measurement in your data set, place one dot above its value on the number line. If a value repeats, or another value is very close to it, stack the new dot directly above the one already there.

3. Check Your Spacing

Keep the dots close together without wide, misleading gaps between them. Uneven spacing can make one value look more common than it really is.

4. Read the Shape

Step back and look at where the dots pile up, where they thin out, and whether any single dot sits far away from the rest. That shape is the real story your data is telling.

Making one in Excel: A basic dot plot can be built in Excel using a scatter chart, with your data values on one axis and a simple counting column (1, 2, 3, and so on) on the other axis to stack repeated values. Dedicated quality software like Minitab can build both Wilkinson and Cleveland-style dot plots automatically from a raw data column.

Dot Plot vs. Histogram vs. Box Plot: How Do You Choose?

This is the practical decision the original glossary page never actually helped a reader make.

Factor	Dot Plot	Histogram	Box Plot
Best data set size	Small (roughly under 50 points)	Larger data sets	Any size, especially for comparisons
Shows individual values?	Yes, every single one	No, values are grouped into bars	No, only a five-number summary
Best for	A quick, honest first look at small data	Seeing the overall shape of larger data	Comparing spread across several groups
Hides outliers?	No, outliers are clearly visible	Sometimes, if bin sizes are too wide	No, outliers are marked separately

How do you decide?

If your data set is small and you want to see every individual value, use a dot plot. If your data set is large enough that individual dots would overlap into a solid mass, switch to a histogram. If your real goal is comparing the spread of several different groups side by side, a box plot is usually the clearer choice.

Also Read: Box Plot

Real-World Example (Hypothetical)

Problem: A quality team is measuring the fill weight of a new product line and has collected 18 samples so far, an early, small batch before full data collection begins.

Analysis: With only 18 values, a histogram would look sparse and hard to interpret, since there wouldn’t be enough data to fill out meaningful bars. The team chooses a dot plot instead.

Six Sigma approach: Each of the 18 fill-weight measurements is plotted as a single dot on a number line marked in grams. The team immediately sees that most values cluster tightly around the target weight, with one clear outlier sitting well below the rest.

Action: The outlier is investigated directly, rather than being averaged into a summary statistic that might have hidden it, and is traced back to a specific filling-station malfunction.

Result (hypothetical): The team fixes the filling-station issue before collecting the full data set needed for deeper statistical analysis, catching the problem early because the dot plot made the outlier immediately visible. This is a hypothetical illustration of the dot plot’s practical use, not a documented case study.

Common Mistakes When Using Dot Plots

• Using a dot plot for a large data set. Once you have too many points, dots overlap into an unreadable mass; switch to a histogram instead.
• Spacing dots unevenly. Leaving gaps between dots that aren’t based on the actual data can make one value look more common than it really is.
• Confusing a dot plot with a scatter plot. A dot plot shows one variable on a single line; a scatter plot shows the relationship between two different variables on two axes.
• Mixing up Wilkinson and Cleveland dot plots. Using a category-comparison (Cleveland) dot plot when you actually need to show the shape of numeric data (Wilkinson), or the reverse, produces a chart that answers the wrong question.
• Treating “qualitative” and “quantitative” as the same thing. A standard dot plot displays quantitative (numeric) data; this is a common and easy mix-up worth double-checking.

When Should You Use a Dot Plot?

Use a dot plot when:

• Your data set is small, generally under about 50 points.
• You want to see every individual value, not a summary or a grouped bar.
• You need a quick, low-effort way to spot outliers or clusters early in a project.

Use a different chart when:

• Your data set is large enough that dots would overlap heavily (use a histogram instead).
• You need to compare the spread of several groups side by side (use a box plot instead).
• You’re studying the relationship between two different variables (use a scatter plot instead).

Frequently Asked Questions on Dot Plot

Q: What is a dot plot used for?

A: A dot plot is used to show the individual values in a small data set on a simple number line, making it easy to spot clusters, gaps, and outliers before doing deeper statistical analysis.

Q: What is the difference between a Cleveland dot plot and a Wilkinson dot plot?

A: A Wilkinson dot plot shows continuous, numeric data, similar to a histogram. A Cleveland dot plot compares a value across different categories, similar to a bar chart. They serve different purposes and shouldn’t be used interchangeably.

Q: Is a dot plot the same as a histogram?

A: No, though they’re similar. A dot plot shows every individual data point as its own dot. A histogram groups data into “buckets” and shows bars, which works better for larger data sets but hides individual values.

Q: When should you use a dot plot instead of a box plot?

A: Use a dot plot when you want to see every individual value in a small data set. Use a box plot when you want to compare the overall spread of several different groups side by side, since a box plot summarizes data rather than showing every point.

Final Words

A dot plot earns its place in a Six Sigma toolkit by doing one thing very well: showing every real value in a small data set without hiding anything inside a bar or a box. Knowing the difference between a Wilkinson dot plot (for numeric data) and a Cleveland dot plot (for comparing categories), and knowing when your data has grown too large for either, is what turns a simple chart into a genuinely useful first step in understanding your data.

Choosing the right chart for your data, and knowing when a simple dot plot beats a histogram or box plot, is a practical skill every Six Sigma practitioner uses in the Measure phase.
