ANOVA is a statistical hypothesis test. It determines whether the means of three or more groups differ significantly from each other. In Six Sigma, ANOVA is used in the Analyze phase of DMAIC. It tests whether a factor (an input variable, X) has a statistically significant effect on the output (Y). The result is an F-statistic and a p-value. If the p-value is below 0.05, at least one group mean is statistically different from the others.
Table of contents
Key Takeaways
- ANOVA stands for Analysis of Variance. Ronald Fisher developed it in 1918. It appears in Fisher’s 1925 book Statistical Methods for Research Workers.
- ANOVA belongs in the Analyze phase of DMAIC. It tests whether a factor causes a statistically significant difference in the process output.
- Use ANOVA when you have three or more groups. For one or two groups, use a 1-sample t-test or a 2-sample t-test instead.
- The output is an F-statistic and a p-value. A p-value below 0.05 (at alpha = 0.05) means at least one group mean is statistically different.
- One-way ANOVA tests one factor. Two-way ANOVA tests two factors and their interaction simultaneously.
- ANOVA requires three assumptions: normality, equal variances (homogeneity), and independence of samples.
- A significant ANOVA result only tells you a difference exists. It does not tell you which specific groups differ. Post-hoc tests (such as Tukey’s test) identify which pairs differ.
- ANOVA appears in the IASSC Green Belt and Black Belt Body of Knowledge under the Analyze phase hypothesis testing content.
What Is ANOVA?
ANOVA is short for Analysis of Variance.
It is a statistical test that compares the means of three or more groups. It asks one question: is the variation between groups larger than the variation within groups?
ANOVA was developed by Ronald Fisher in 1918. It appeared in his 1925 book Statistical Methods for Research Workers. It was first applied in experimental psychology and later extended to engineering, medicine, agriculture, and manufacturing.
Why ANOVA Matters in Six Sigma?
In a Six Sigma project, the Analyze phase has one job. It identifies which inputs (Xs) cause significant variation in the output (Y).
ANOVA is the primary tool for that job when you have categorical X data and continuous Y data.
Without ANOVA, teams guess which factors matter. With ANOVA, they test it statistically. That is the difference between opinion and evidence.
Public, Onsite, Virtual, and Online Six Sigma Certification Training!
- We are accredited by the IASSC.
- Live Public Training at 52 Sites.
- Live Virtual Training.
- Onsite Training (at your organization).
- Interactive Online (self-paced) training,

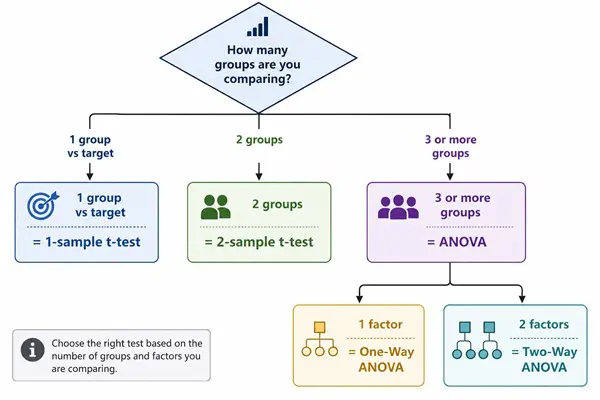

ANOVA vs the t-Test: When to Use Each
Many practitioners confuse ANOVA with the t-test. Both test means. They apply to different situations.
The rule is straightforward:
| Situation | Correct Test |
| Testing one group mean against a target value | 1-sample t-test |
| Comparing two group means | 2-sample t-test |
| Comparing three or more group means | One-way ANOVA |
| Comparing groups across two factors | Two-way ANOVA |
Running multiple t-tests instead of ANOVA increases the risk of a Type I error. That is the risk of concluding a difference exists when it does not. LearnLeanSigma confirms: ANOVA “handles three or more groups in one shot, avoiding multiple t-tests and inflated Type I error.”
The Null and Alternate Hypothesis in ANOVA
ANOVA is a hypothesis test. It starts with two competing claims.
Null hypothesis (H0): All group means are equal. Any differences between groups are due to random variation, not a real effect.
Alternate hypothesis (H1): At least one group mean differs from the others.
You do not reject H0 unless the data provides sufficient statistical evidence against it. That evidence comes from the F-statistic and the p-value.
Also Read: Is there a Difference? How to use ANOVA to Find Out
The F-Statistic: What ANOVA Actually Calculates

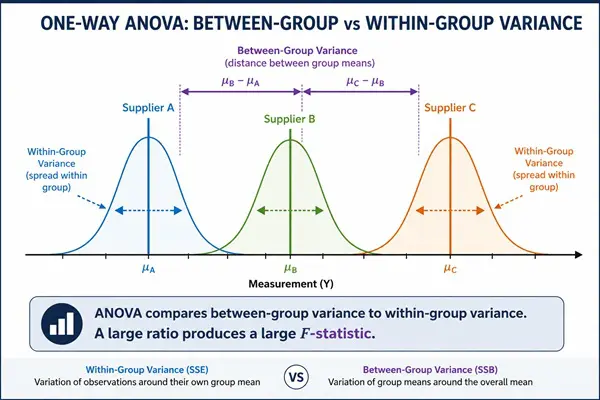

ANOVA works by splitting total variance into two components.
Between-group variance: Variation due to differences between group means. If your factor (X) has a real effect, the group means will differ more than expected by chance. Between-group variance will be large.
Within-group variance: Variation due to random error within each group. This reflects natural scatter in the data.
The F-statistic is the ratio of these two components:
F = Between-group variance divided by within-group variance
VSkills explains: “ANOVA uses two components of variance and the F test to test the two components: BETWEEN sample variance is a study of the variation among all the samples usually due to process difference or factor changes. WITHIN sample variance explains the variation within each sample itself.”
A large F-statistic means between-group variance is much larger than within-group variance. That indicates the factor has a real effect on the output.
A small F-statistic means the group means are not more different than expected by random chance. The factor does not appear to have a significant effect.
The F-statistic is then converted to a p-value using the F-distribution.
Reading the p-Value in ANOVA
The p-value tells you the probability of observing the data if the null hypothesis were true.
The standard alpha level in Six Sigma is 0.05.
The decision rule:
- p-value less than or equal to 0.05: Reject the null hypothesis. At least one group mean is statistically different. The factor has a significant effect on the output.
- p-value greater than 0.05: Fail to reject the null hypothesis. The data does not provide sufficient evidence that group means differ.
Important: A significant ANOVA result only tells you that a difference exists somewhere. It does not tell you which specific group means are different. To find which pairs differ, you run a post-hoc test such as Tukey’s Honestly Significant Difference (HSD) test.
The Three Assumptions of ANOVA
ANOVA produces valid results only when three conditions hold.
1. Normality Each group’s data should be approximately normally distributed.
You can test this with a normality test such as the Anderson-Darling test in Minitab.
2. Equal variances (homogeneity of variance) The variance within each group should be approximately equal across all groups.
If group variances are significantly different, ANOVA results may be unreliable. Use Bartlett’s test or Levene’s test to check this assumption before interpreting your ANOVA output.
3. Independence Each observation must be independent of every other observation. Data collected from the same subject at multiple times violates this assumption. For repeated measurements, use a repeated-measures ANOVA instead.
Also Read: Can Lean Six Sigma Be Used Outside Manufacturing?
Types of ANOVA Used in Six Sigma
One-Way ANOVA (One-Factor ANOVA)
One-way ANOVA tests whether one categorical factor significantly affects a continuous output.
A Six Sigma example: You want to know whether production shift (morning, afternoon, night) significantly affects defect rate. Shift is your one factor. Defect rate is your continuous output. One-way ANOVA tests whether the three shift means are statistically different.
This is the most common ANOVA type used at Green Belt level.
Two-Way ANOVA (Two-Factor ANOVA)
Two-way ANOVA tests two categorical factors simultaneously. It also tests whether the two factors interact with each other.
A Six Sigma example: You want to know whether both production shift and machine type affect defect rate, and whether the combination of a specific shift and machine type creates additional effects beyond each factor alone. Two-way ANOVA tests all three simultaneously.
Two-way ANOVA appears at Black Belt level in the IASSC Body of Knowledge.
Repeated-Measures ANOVA
Repeated-measures ANOVA applies when the same subjects or units are measured at multiple time points or under multiple conditions.
A Six Sigma example: You measure the same machine’s output before training, immediately after training, and six months after training. Each measurement comes from the same machine, so independence is violated. Repeated-measures ANOVA handles this correctly.
ANOVA in the DMAIC Cycle
ANOVA sits in the Analyze phase of DMAIC. This is its home.
In the Analyze phase, the team has already collected baseline data in the Measure phase. They now test which input variables (Xs) statistically affect the output (Y).
ANOVA is the right tool when:
- The output (Y) is continuous data (measurements, time, dimensions, costs)
- The input (X) is categorical data (machine type, operator, shift, supplier, location)
- You are comparing three or more groups
The decision sequence:
- State the null and alternate hypotheses.
- Verify the three assumptions (normality, equal variances, independence).
- Run the ANOVA test in Minitab or other statistical software.
- Read the F-statistic and p-value.
- If p is less than 0.05, reject the null. Identify which groups differ using a post-hoc test.
- Document the finding as a confirmed root cause candidate.
Worked Example: ANOVA in a Manufacturing Project
A Green Belt is investigating a high defect rate in a painting process. Three suppliers provide the coating material. The Green Belt suspects the supplier is a root cause.
She collects 30 samples from each supplier: 90 total data points. She measures coating thickness in microns.
Step 1: State the hypotheses. H0: Mean coating thickness is equal across all three suppliers. H1: At least one supplier produces a different mean coating thickness.
Step 2: Check assumptions. She runs an Anderson-Darling test. All three groups pass normality. She runs Levene’s test. All three groups have approximately equal variance.
Step 3: Run one-way ANOVA in Minitab. The output shows F = 8.43 and p = 0.003.
Step 4: Interpret the result. p = 0.003 is less than 0.05. She rejects the null hypothesis. At least one supplier produces statistically different coating thickness.
Step 5: Run Tukey’s HSD post-hoc test. Results show Supplier B differs significantly from Suppliers A and C. Suppliers A and C do not differ from each other.
Step 6: Document the finding. Supplier B is confirmed as a significant source of coating thickness variation. The team moves to the Improve phase to address supplier specifications.
This is ANOVA applied exactly as Six Sigma practitioners use it in the Analyze phase.
FAQ: ANOVA in Six Sigma
What does ANOVA stand for and what does it do?
ANOVA stands for Analysis of Variance. It is a statistical test that compares the means of three or more groups to determine whether at least one group mean is statistically different from the others. It separates total variation in the data into between-group variation and within-group variation. The ratio of these two components produces the F-statistic. In Six Sigma, ANOVA is used in the Analyze phase of DMAIC to test whether a factor (X) significantly affects the process output (Y).
When should you use ANOVA instead of a t-test?
Use ANOVA when you are comparing three or more group means. Use a 2-sample t-test when comparing exactly two groups. Use a 1-sample t-test when comparing one group mean to a known target value. Running multiple t-tests instead of ANOVA increases the risk of Type I error (a false positive). ANOVA tests all groups simultaneously under a single unified hypothesis, which controls that error rate.
What is the null hypothesis in ANOVA?
The null hypothesis states that all group means are equal. Any observed differences between groups are due to random variation, not a real effect of the factor being tested. The alternate hypothesis states that at least one group mean differs from the others. You reject the null hypothesis when the p-value from the ANOVA test is below your chosen alpha level (typically 0.05 in Six Sigma projects).
What does a significant ANOVA result tell you?
A significant ANOVA result (p less than 0.05) tells you that at least one group mean is statistically different from the others. It does not tell you which specific groups differ. To identify which pairs of groups are different, you need to run a post-hoc test such as Tukey’s HSD after the ANOVA.
What are the three assumptions of ANOVA?
The three assumptions are: (1) normality, meaning each group’s data should be approximately normally distributed; (2) equal variances, meaning the variance within each group should be approximately equal across all groups; and (3) independence, meaning each observation must be independent of all other observations. You can test normality with the Anderson-Darling test and equal variances with Levene’s test or Bartlett’s test.
What is the difference between one-way and two-way ANOVA?
One-way ANOVA tests whether one categorical factor has a statistically significant effect on a continuous output. Two-way ANOVA tests whether two categorical factors, and their interaction with each other, affect the output. One-way ANOVA is used at Green Belt level. Two-way ANOVA and interaction effects are taught at Black Belt level and appear in DOE-related content in the IASSC Black Belt Body of Knowledge.
Where does ANOVA appear in the IASSC Body of Knowledge?
ANOVA appears in the Analyze phase of the IASSC Lean Six Sigma Green Belt and Black Belt Bodies of Knowledge. At Green Belt level, it is covered under hypothesis testing for means with more than two groups. At Black Belt level, the content expands to include two-way ANOVA, interaction effects, and the relationship between ANOVA and the analysis of Design of Experiments results.
