What is Design for Manufacturing and Assembly?

Design for Manufacturing and Assembly (DFMA) is a critical methodology in product development that focuses on simplifying and optimizing the design of products to improve manufacturability and ease of assembly. By integrating DFMA principles early in the design phase, manufacturers can significantly enhance product quality, reduce production costs, and accelerate time-to-market.

This approach not only benefits the manufacturing process but also aligns with broader goals of operational efficiency and market competitiveness. In this comprehensive guide, we will explore the core principles of DFMA, its key benefits, and practical strategies for implementation.

What is Design for Manufacturing (DFM)?

Design for Manufacturing (DFM) involves creating products with an emphasis on ease of manufacturing. This principle ensures that the design of a product aligns with the capabilities and constraints of the chosen manufacturing processes.

By considering factors such as material selection, process compatibility, and production techniques, DFM aims to enhance product quality, increase production volumes, and lower costs.

Key Principles of Design for Manufacturing

1. Reduce the Number of Parts
   Simplifying a product by reducing the number of parts is one of the most effective ways to lower manufacturing costs. Fewer parts lead to reduced purchasing, inventory, handling, processing time, development, and assembly challenges. For example, utilizing one-piece structures or selecting processes like injection moulding, extrusion, precision casting, and powder metallurgy can be beneficial.
2. Develop a Modular Design
   Modular design involves creating components that can be independently produced and then assembled into a final product. This approach simplifies manufacturing activities such as inspection, testing, assembly, purchasing, and maintenance.
3. Use Standard Components
   Standard components, as opposed to custom-made ones, are generally more cost-effective and reliable. Their widespread availability reduces lead times and production pressures. It can help meet production schedules more efficiently.
4. Design Parts to be Multi-functional
   Multi-functional parts can perform more than one role, reducing the overall number of components. For instance, a part might act as both a structural member and an electric conductor.
5. Design Parts for Multi-use
   Parts designed for multi-use can be shared across different products, reducing the need for unique components for each product. By creating part families and standardizing manufacturing processes, companies can minimize variations and simplify design changes.
6. Design for Ease of Fabrication
   Choosing the right material and fabrication process is essential to minimize manufacturing costs. Avoiding final operations like painting and polishing, excessive tolerance requirements, and intricate surface finishes can significantly lower production expenses.
7. Avoid Separate Fasteners
   Fasteners can increase manufacturing costs due to additional handling and equipment requirements. Where possible, replace fasteners with integrated features like snap-fits or tabs. If fasteners are necessary, minimize their number and variety, use standard components, and avoid issues like long screws or separate washers.
8. Minimize Assembly Directions
   To simplify assembly, design parts so that they can be assembled from a single direction. Ideally, parts should be added from above or in a vertical direction, which leverages gravity to assist in the assembly process.
9. Maximize Compliance
   Compliance features in parts and assembly processes help accommodate variations in part dimensions and reduce damage risks. Design parts with features like tapers or chamfers to ease insertion, and use rigid bases and vision systems in assembly processes to improve accuracy and efficiency.
10. Minimize Handling
    Handling involves positioning, orienting, and fixing parts, which can be minimized by using symmetrical designs or exaggerated asymmetries for easier orientation. Utilizing guides, magazines, and fixtures can streamline the process, and careful design can reduce material waste and ensure safe packaging.

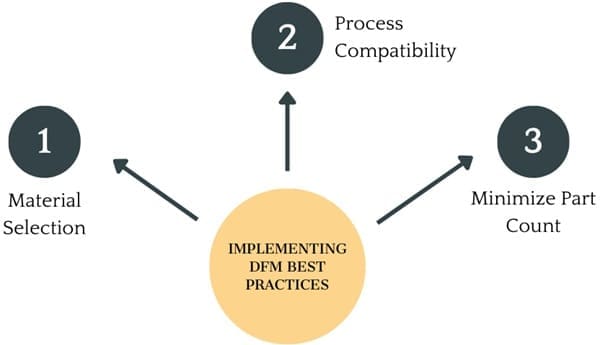

Implementing DFM Best Practices

• Material Selection: Choose materials that are compatible with the intended manufacturing processes. Consider factors such as material availability, cost, and ease of processing. For example, selecting a material that is easy to cast or mould can reduce production time and costs.
• Process Compatibility: Ensure that the design of the product aligns with the chosen manufacturing processes. This involves understanding the capabilities and limitations of processes such as casting, machining, or injection moulding. For example, designing parts with uniform wall thicknesses can help achieve consistent cooling and reduce defects.
• Minimize Part Count: Reducing the number of parts in a design can lead to cost savings and improved manufacturability. Fewer parts mean fewer assembly steps, lower inventory requirements, and reduced risk of assembly errors.

What is Design for Assembly (DFA)?

Design for Assembly (DFA) focuses on simplifying and optimizing the assembly process of products. The goal is to design products that are easy to assemble, whether manually or using automated systems. By considering assembly factors early in the design phase, manufacturers can reduce assembly time, lower costs, and improve overall product quality.

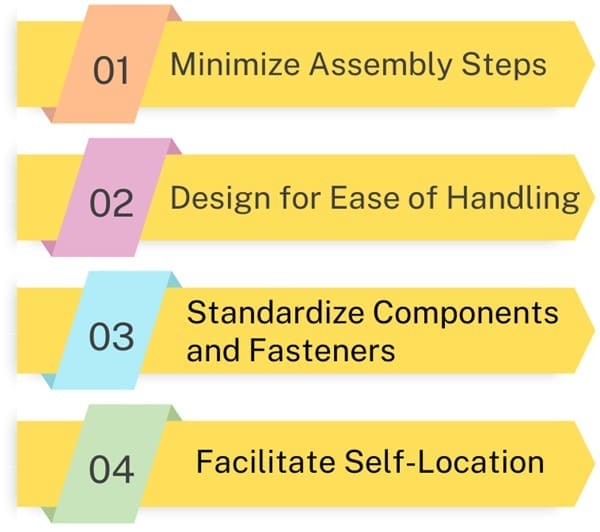

Core Principles of DFA

1. Minimize Assembly Steps: Reducing the number of assembly steps is a key principle of DFA. Fewer steps translate to faster assembly times and reduced labour costs. Simplifying assembly tasks can also lead to fewer errors and higher product quality.
2. Design for Ease of Handling: Ensure that parts are easy to handle and orient during assembly. Designing parts with features that facilitate easy gripping and positioning can reduce assembly time and minimize the risk of errors.
3. Standardize Components and Fasteners: Using standardized components and fasteners can streamline the assembly process. Standardization reduces the need for custom parts, simplifies inventory management, and allows for quicker assembly.
4. Facilitate Self-Location: Designing parts with self-locating features can simplify assembly. Self-locating components are easier to align and position correctly, reducing the need for manual adjustments and improving overall assembly efficiency.

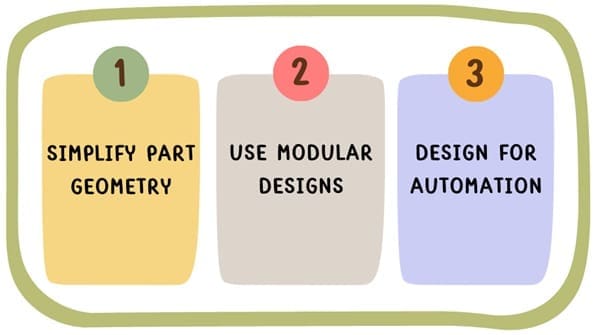

Implementing DFA Best Practices

• Simplify Part Geometry: Design parts with simple geometry to make assembly easier. Avoid complex shapes or features that require special handling or precise alignment. Simple geometries are easier to manufacture and assemble, leading to cost savings and improved product quality.
• Use Modular Designs: Modular designs involve creating products with interchangeable modules or components. This approach allows for easier assembly and disassembly, as well as greater flexibility in production. Modular designs can also simplify maintenance and repairs.
• Design for Automation: When possible, design products for automated assembly processes. Automated systems can increase production speed and consistency, leading to cost savings and improved product quality. Consider factors such as part orientation, handling, and compatibility with automation equipment.

Casting and Moulding Processes

Casting and moulding are essential manufacturing processes used to create complex shapes and components. Understanding the different methods and best practices for casting and moulding can help optimize product design and manufacturing efficiency.

Casting Techniques

• Sand Casting: Sand casting involves pouring molten metal into a sand mould to create a part. This method is suitable for producing complex shapes and large parts at a reasonable cost. Sand casting is often used for small to medium-sized production runs.
• Investment Casting: Also known as lost wax casting, investment casting involves creating a wax pattern that is coated with a ceramic shell. The wax is then melted away, and molten metal is poured into the shell to create the final part. This technique is ideal for producing intricate details and high-quality finishes.
• Die Casting: Die casting involves injecting molten metal into a steel mould under high pressure. This method is suitable for high-volume production of parts with complex shapes and tight tolerances. Die casting is commonly used for manufacturing components in industries such as automotive and aerospace.

Moulding Techniques

• Injection Molding: Injection moulding involves injecting molten plastic into a mould to create a part. This method is widely used for producing plastic components with high precision and consistency. Injection moulding is suitable for high-volume production and complex geometries.
• Blow Molding: Blow moulding creates hollow plastic parts by inflating a molten plastic tube inside a mould. Manufacturers commonly use this technique to produce bottles, containers, and other hollow components. Blow moulding is suitable for high-volume production and can accommodate a range of plastic materials.
• Compression Molding: Compression moulding involves placing a preheated plastic material into a mould cavity and applying heat and pressure to shape the part. This method is often used for producing large, complex parts with high strength and durability.

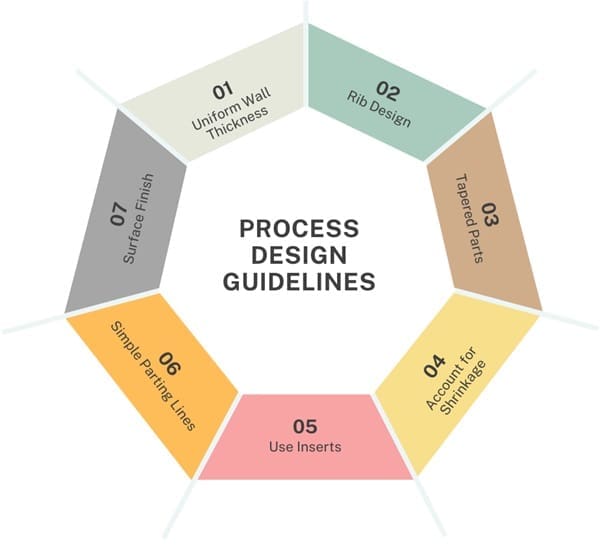

Process Design Guidelines

Designing for manufacturing and assembly involves considering various process design guidelines to optimize production efficiency and product quality. Here are some key guidelines to follow:

1. Uniform Wall Thickness: Use uniform wall thicknesses in castings and moulded parts to ensure consistent cooling and reduce the risk of defects. Thinner walls may be used for interior features to minimize material usage and weight.
2. Rib Design: Incorporate ribs and brackets into designs to improve rigidity and reduce part weight. Ribs can enhance the structural strength of parts while minimizing material usage and shrinkage.
3. Tapered Parts: Design parts with tapered features to facilitate easy removal from moulds. Tapered surfaces help prevent sticking and reduce the need for excessive force during demolding.
4. Account for Shrinkage: Consider material shrinkage during the cooling phase when designing castings and moulded parts. Allow for additional material to compensate for shrinkage and ensure that parts meet dimensional specifications.
5. Use Inserts: For parts with similar shapes, consider using inserts to modify specific features without altering the entire tool. Inserts can help reduce tooling costs and improve flexibility in production.
6. Simple Parting Lines: Design moulds with simple parting lines to reduce tooling costs and improve mould quality. Simple parting lines make it easier to align and remove parts from the mould.
7. Surface Finish: Plan for adequate surface finish and machining operations. Select the roughest possible surface finish to reduce costs, and leave ample room for machining if necessary.

Forming and Shaping Processes

Forming and shaping processes are essential for producing components from sheet materials. Understanding the best practices for these processes can help optimize product design and manufacturing efficiency.

1. Sheet Metal Forming: In sheet metal forming, avoid closely spaced features and configure wide tolerances for side features. Consider factors such as spring back and bend radii, which are material-dependent and impact the final shape of the part.
2. Roll-to-Roll Processes: Roll-to-roll processes are used for the continuous production of films, textiles, and other materials. Keep tolerances as wide as possible to minimize costs and combine functions and processes for efficiency.
3. Material Strength and Thickness: Consider the material strength and thickness when designing parts for forming and shaping. Complex parts requiring significant material separation may need higher forces and multiple forming steps.

Also See: Lean Six Sigma Certification Programs, Stockton, California

Machining Processes

Machining processes remove material from a workpiece to achieve the desired shape and dimensions. Following best practices for machining can help optimize production efficiency and reduce costs.

1. Material Selection: Choose the softest material that meets the required specifications. Softer materials are easier to machine and reduce tool wear. Ensure that the material is rigid enough to withstand machining forces.
2. Minimize Machine and Tool Changes: Reduce the number of machine and tool changes to decrease fixturing and process time. Fewer changes lead to lower setup costs and improved efficiency.
3. Subtractive Processes: For rotational components, ensure that cylindrical surfaces are concentric and diameters increase from the exposed face. For non-rotational components, provide a stable base and avoid complex plane-surface machining.
4. Standard Tooling: Use standard tool corner radii for internal corners to avoid tool changes and reduce costs. Minimize the number of tools required for machining operations to streamline production.

Integrating DFM and DFA

Design for Manufacturing (DFM) and Design for Assembly (DFA) share the goal of reducing manufacturing costs and improving product quality by integrating design and manufacturing processes.

DFM focuses on optimizing design to make manufacturing more efficient, while DFA emphasizes simplifying the assembly process.

Applying DFM and DFA principles together can lead to significant cost savings, higher product quality, and improved manufacturing efficiency. Early design decisions can greatly influence manufacturing outcomes. Incorporating manufacturing expertise into the design phase ensures that products are designed with production in mind.

Final Read

Design for Manufacturing and Assembly (DFMA) is a powerful approach that can significantly enhance product development and production efficiency. By integrating DFM principles, manufacturers can optimize product designs for easier and more cost-effective manufacturing processes. DFA principles further streamline the assembly process, reducing costs and improving product quality.

Understanding and implementing best practices for casting, moulding, forming, shaping, and machining processes are essential for achieving optimal results. By applying these principles and guidelines, manufacturers can create products that are not only high in quality but also cost-effective and efficient to produce. Embracing DFMA principles early in the design phase can lead to significant long-term benefits, including reduced production costs, improved product quality, and faster time-to-market.
